SETsafe | SETfuse SCF520PF10A250V

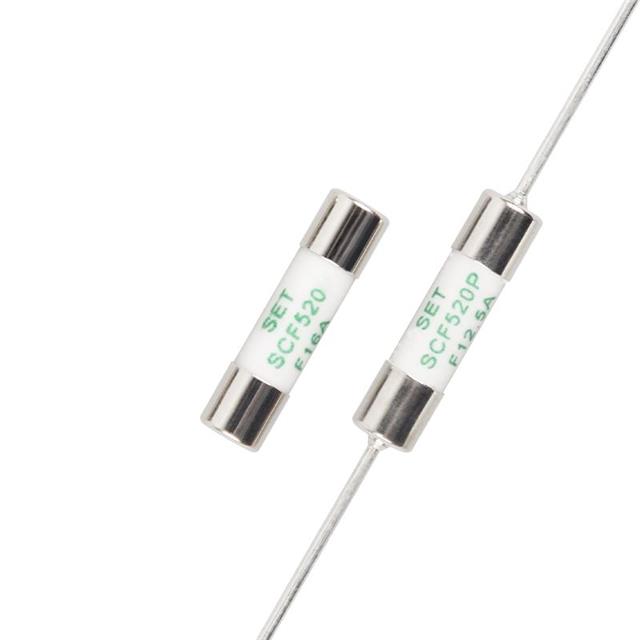

Image shown is a representation only
Manufacturer
Manufacturer No
SCF520PF10A250V
Package
5mm x 20mm (Axial)
Packaging
Bulk
Description
MINITURE FUSE
Detailed Description
10A 500 VAC 500 VDC Fuse Cartridge Through Hole
DataSheet
Series
SCF520P
Fuse Type
Cartridge
Packaging
Bulk
Part Status
Active
Applications
Electrical, Industrial
Manufacturer
SETsafe | SETfuse
Melting I²t
235.0
Mounting Type
Through Hole
Response Time
Fast Blow
Package / Case
5mm x 20mm (Axial)
Approval Agency
CQC, cUl, UL
Size / Dimension
0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Voltage Rating - AC
500 VAC
Voltage Rating - DC
500 VDC
Current Rating (Amps)
10A
Breaking Capacity @ Rated Voltage
300A
| Attribute | Value |
|---|---|
| Series | SCF520P |
| Fuse Type | Cartridge |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Electrical, Industrial |
| Manufacturer | SETsafe | SETfuse |
| Melting I²t | 235.0 |
| Mounting Type | Through Hole |
| Response Time | Fast Blow |
| Package / Case | 5mm x 20mm (Axial) |
| Approval Agency | CQC, cUl, UL |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Voltage Rating - AC | 500 VAC |
| Voltage Rating - DC | 500 VDC |
| Current Rating (Amps) | 10A |
| Breaking Capacity @ Rated Voltage | 300A |
