Step1: Product

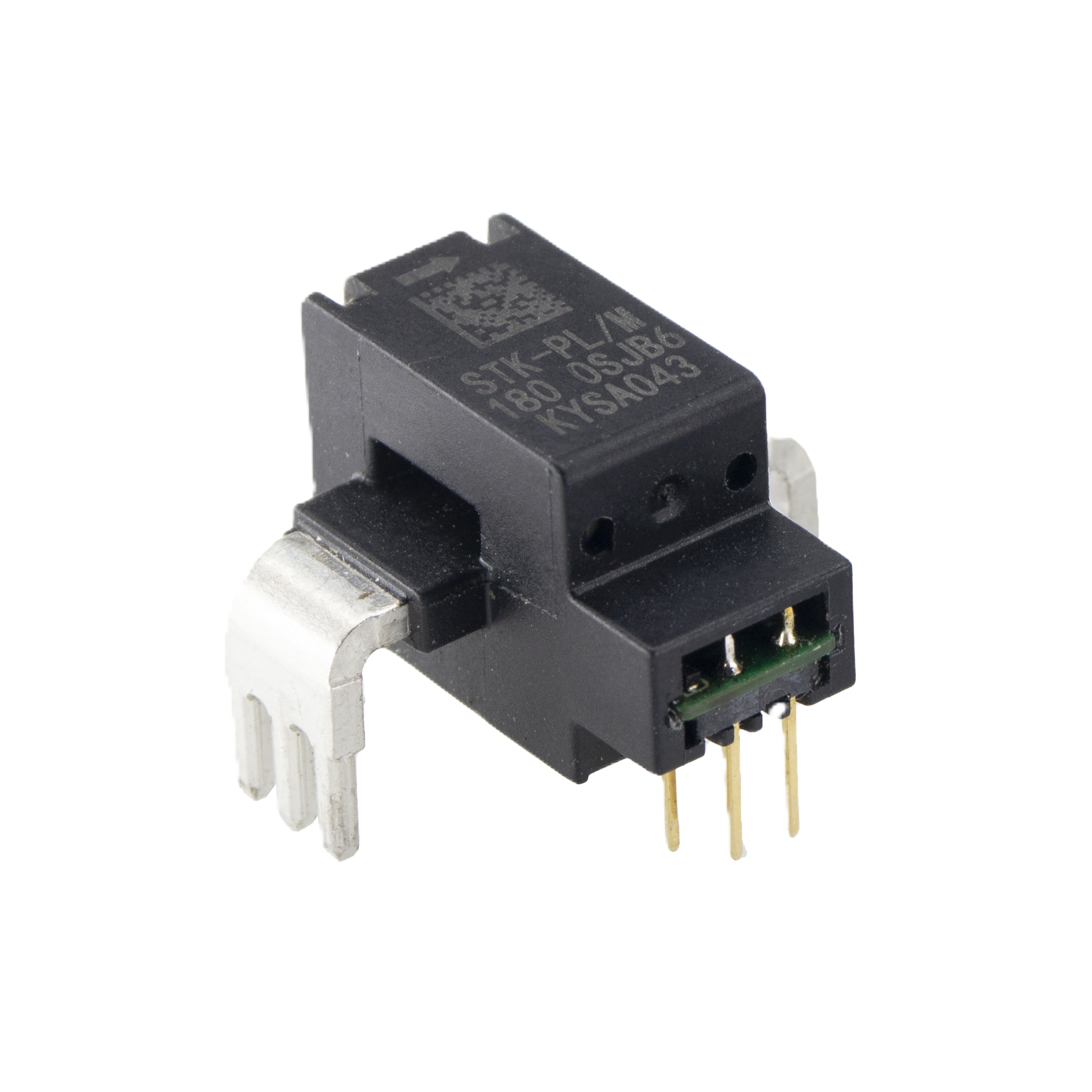

Sensitec STK-120PL/Z
Image shown is a representation only
Manufacturer
Manufacturer No
STK-120PL/Z
Package
Module
Packaging
Tray
Description
CURRENT SENSOR HALL/OL 120A
Detailed Description
Current Sensor 120A 1 Channel Hall Effect, Open Loop Bidirectional Module
DataSheet
Mfr
Sensitec
Output
Ratiometric, Voltage
Series
STK-PL
Accuracy
±1%
Frequency
DC ~ 400kHz
Linearity
±0.5%
Packaging
Tray
Part Status
Active
Sensitivity
6.667mV/A
Sensor Type
Hall Effect, Open Loop
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
1.5µs
Package / Case
Module
Voltage - Supply
4.75V ~ 5.25V
Current - Sensing
120A
Number of Channels
1
Operating Temperature
-40°C ~ 105°C
| Attribute | Value |
|---|---|
| Mfr | Sensitec |
| Output | Ratiometric, Voltage |
| Series | STK-PL |
| Accuracy | ±1% |
| Frequency | DC ~ 400kHz |
| Linearity | ±0.5% |
| Packaging | Tray |
| Part Status | Active |
| Sensitivity | 6.667mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 1.5µs |
| Package / Case | Module |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Sensing | 120A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 105°C |
