Step1: Product

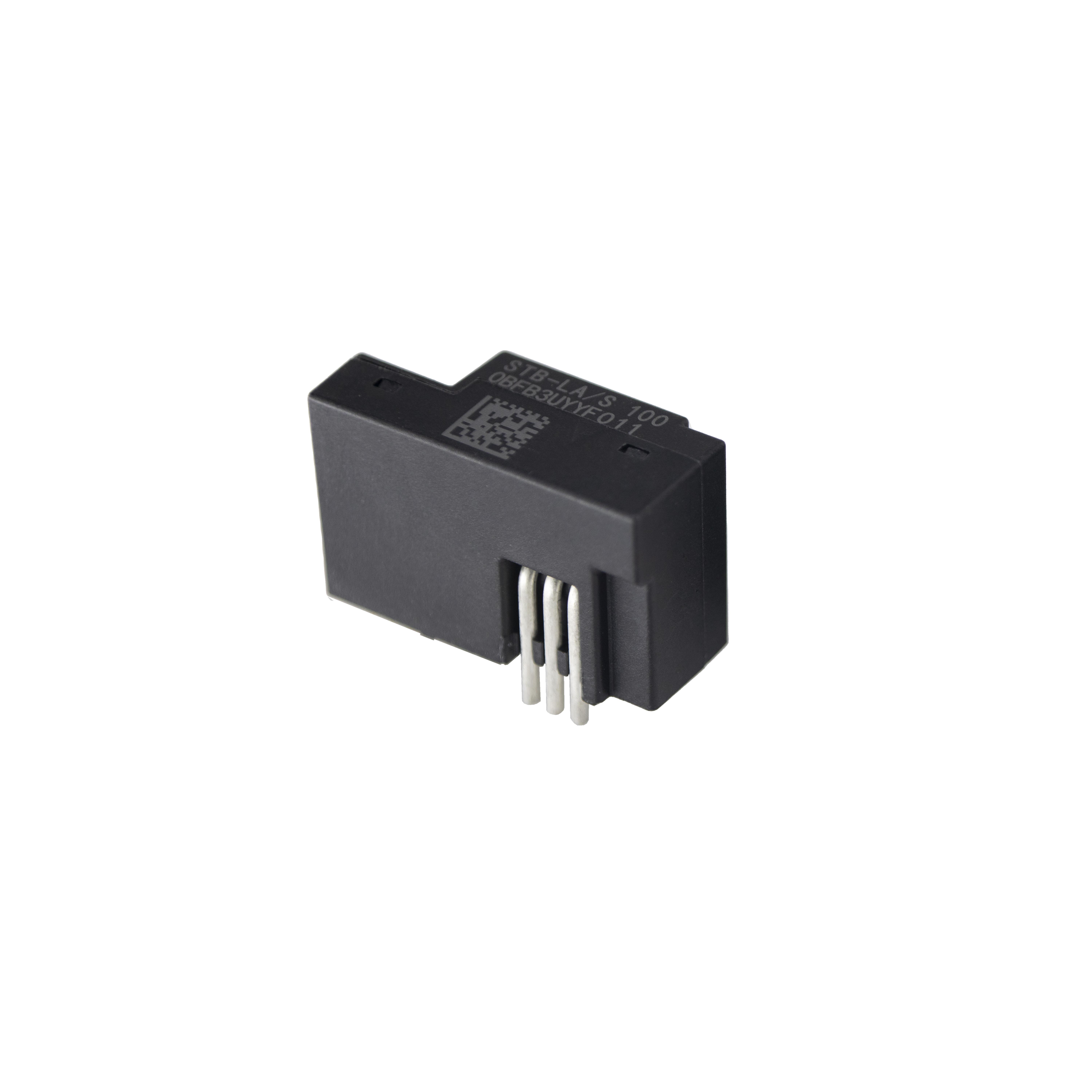

Sensitec STB-100LA/S
Image shown is a representation only
Manufacturer
Manufacturer No
STB-100LA/S
Package
Module
Packaging
Tray
Description
CURRENT SENSOR TMR/CL 100A
Detailed Description
Current Sensor 100A 1 Channel Magnetoresistive, Closed Loop Bidirectional Module
DataSheet
Mfr
Sensitec
Output
Ratiometric, Voltage
Series
STB-LA/S
Accuracy
±0.8%
Frequency
DC ~ 300kHz
Linearity
±0.1%
Packaging
Tray
Part Status
Active
Sensitivity
6.25mV/A
Sensor Type
Magnetoresistive, Closed Loop
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
500ns
Package / Case
Module
Voltage - Supply
4.75V ~ 5.25V
Current - Sensing
100A
Number of Channels
1
Operating Temperature
-40°C ~ 105°C
Current - Supply (Max)
350mA
| Attribute | Value |
|---|---|
| Mfr | Sensitec |
| Output | Ratiometric, Voltage |
| Series | STB-LA/S |
| Accuracy | ±0.8% |
| Frequency | DC ~ 300kHz |
| Linearity | ±0.1% |
| Packaging | Tray |
| Part Status | Active |
| Sensitivity | 6.25mV/A |
| Sensor Type | Magnetoresistive, Closed Loop |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 500ns |
| Package / Case | Module |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 105°C |
| Current - Supply (Max) | 350mA |
