Step1: Product
Semtech Corporation SX1231HIMLTRT

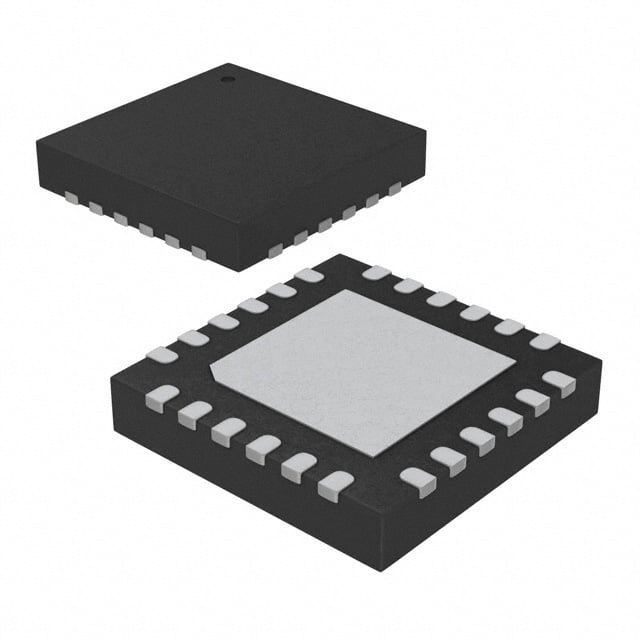

Image shown is a representation only
Manufacturer
Manufacturer No
SX1231HIMLTRT
Quantity
110
Availability
In Stock
Package
24-VQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC RF TXRX ISM<1GHZ 24QFN
Detailed Description
IC RF TxRx Only General ISM < 1GHz 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz 24-VQFN Exposed Pad
DataSheet
Mfr
Semtech Corporation
GPIO
6
Type
TxRx Only
Frequency
290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
FSK, GFSK, GMSK, MSK, OOK
Part Status
Active
Sensitivity
-120dBm
Mounting Type
Surface Mount
Package / Case
24-VQFN Exposed Pad
Power - Output
20dBm
Data Rate (Max)
300kbps
Voltage - Supply
2.4V ~ 3.6V
Serial Interfaces
SPI
RF Family/Standard
General ISM < 1GHz
Base Product Number
SX1231
Current - Receiving
16mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
16mA ~ 130mA
Supplier Device Package
24-QFN (5x5)
| Attribute | Value |
|---|---|
| Mfr | Semtech Corporation |
| GPIO | 6 |
| Type | TxRx Only |
| Frequency | 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | FSK, GFSK, GMSK, MSK, OOK |
| Part Status | Active |
| Sensitivity | -120dBm |
| Mounting Type | Surface Mount |
| Package / Case | 24-VQFN Exposed Pad |
| Power - Output | 20dBm |
| Data Rate (Max) | 300kbps |
| Voltage - Supply | 2.4V ~ 3.6V |
| Serial Interfaces | SPI |
| RF Family/Standard | General ISM < 1GHz |
| Base Product Number | SX1231 |
| Current - Receiving | 16mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 16mA ~ 130mA |
| Supplier Device Package | 24-QFN (5x5) |
