Step1: Product

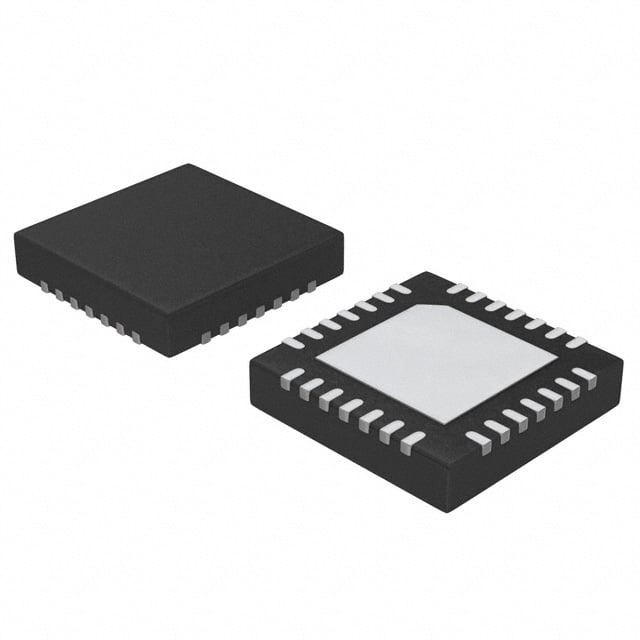

Semtech Corporation SX1278IMLTRT
Image shown is a representation only
Manufacturer
Manufacturer No
SX1278IMLTRT
Quantity
198
Availability
In Stock
Package
28-VQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC RF TXRX 802.15.4 28QFN
Detailed Description
IC RF TxRx Only 802.15.4 LoRa™ 137MHz ~ 525MHz 28-VQFN Exposed Pad
DataSheet
Mfr
Semtech Corporation
GPIO
6
Type
TxRx Only
Series
LoRa™
Protocol
LoRa™
Frequency
137MHz ~ 525MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
FSK, GFSK, GMSK, MSK, OOK
Part Status
Active
Sensitivity
-148dBm
Mounting Type
Surface Mount
Package / Case
28-VQFN Exposed Pad
Power - Output
20dBm
Data Rate (Max)
300kbps
Voltage - Supply
1.8V ~ 3.7V
Serial Interfaces
SPI
RF Family/Standard
802.15.4
Base Product Number
SX1278
Current - Receiving
10.8mA ~ 12mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
20mA ~ 120mA
Supplier Device Package
28-QFN (6x6)
| Attribute | Value |
|---|---|
| Mfr | Semtech Corporation |
| GPIO | 6 |
| Type | TxRx Only |
| Series | LoRa™ |
| Protocol | LoRa™ |
| Frequency | 137MHz ~ 525MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | FSK, GFSK, GMSK, MSK, OOK |
| Part Status | Active |
| Sensitivity | -148dBm |
| Mounting Type | Surface Mount |
| Package / Case | 28-VQFN Exposed Pad |
| Power - Output | 20dBm |
| Data Rate (Max) | 300kbps |
| Voltage - Supply | 1.8V ~ 3.7V |
| Serial Interfaces | SPI |
| RF Family/Standard | 802.15.4 |
| Base Product Number | SX1278 |
| Current - Receiving | 10.8mA ~ 12mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 20mA ~ 120mA |
| Supplier Device Package | 28-QFN (6x6) |
