Step1: Product

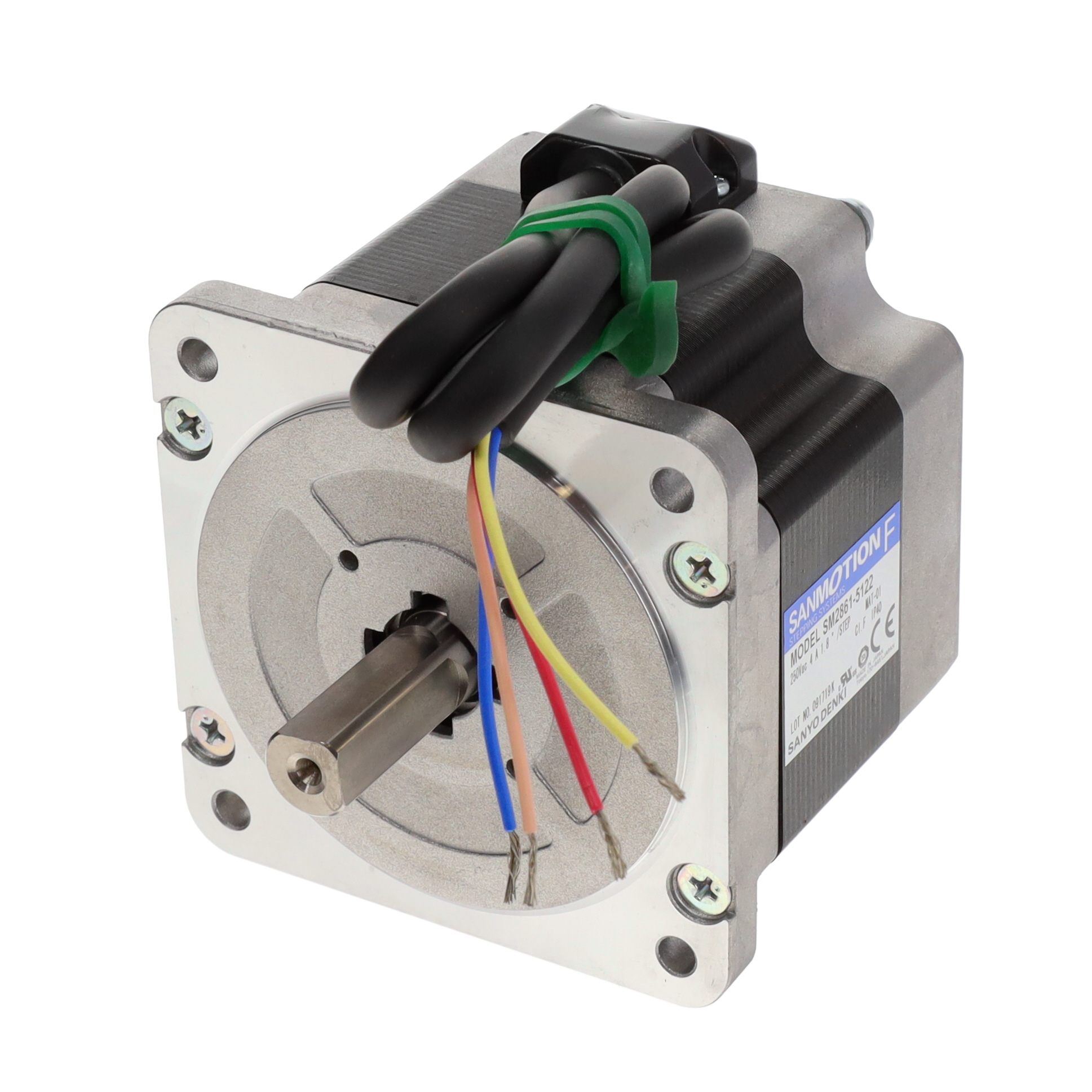

Sanyo Denki SanMotion Products SM2861-5122
Image shown is a representation only
Manufacturer
Manufacturer No
SM2861-5122
Packaging
Box
Description
STEP, F2, SQ.86, 1.8, HALF INCH
Detailed Description
Bipolar Stepper Motor Hybrid, Dual Shaft Frame Size 34 200.0 Step 4 A 100VAC
Datasheet
Mfr
Sanyo Denki SanMotion Products
Type
Hybrid, Dual Shaft
Coil Type
Bipolar
Packaging
Box
Step Angle
1.8°
Rotor Inertia
35.59gcm²
Approval Agency
CE, cURus, TUV
Coil Resistance
560 Ohms
NEMA Frame Size
34
Voltage - Rated
100VAC
Diameter - Shaft
0.500" (12.70mm)
Size / Dimension
Square - 3.386" x 3.386" (86.00mm x 86.00mm)
Termination Style
Wire Leads
Base Product Number
SM2861
Steps per Revolution
200.0
Current Rating (Amps)
4 A
Mounting Hole Spacing
2.740" (69.60mm)
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
1.181" (30.00mm)
Torque - Holding (oz-in / mNm)
467.3 / 3300
| Attribute | Value |
|---|---|
| Mfr | Sanyo Denki SanMotion Products |
| Type | Hybrid, Dual Shaft |
| Coil Type | Bipolar |
| Packaging | Box |
| Step Angle | 1.8° |
| Rotor Inertia | 35.59gcm² |
| Approval Agency | CE, cURus, TUV |
| Coil Resistance | 560 Ohms |
| NEMA Frame Size | 34 |
| Voltage - Rated | 100VAC |
| Diameter - Shaft | 0.500" (12.70mm) |
| Size / Dimension | Square - 3.386" x 3.386" (86.00mm x 86.00mm) |
| Termination Style | Wire Leads |
| Base Product Number | SM2861 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 4 A |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Torque - Holding (oz-in / mNm) | 467.3 / 3300 |
