Sanyo Denki SanMotion Products 103H7823-1760

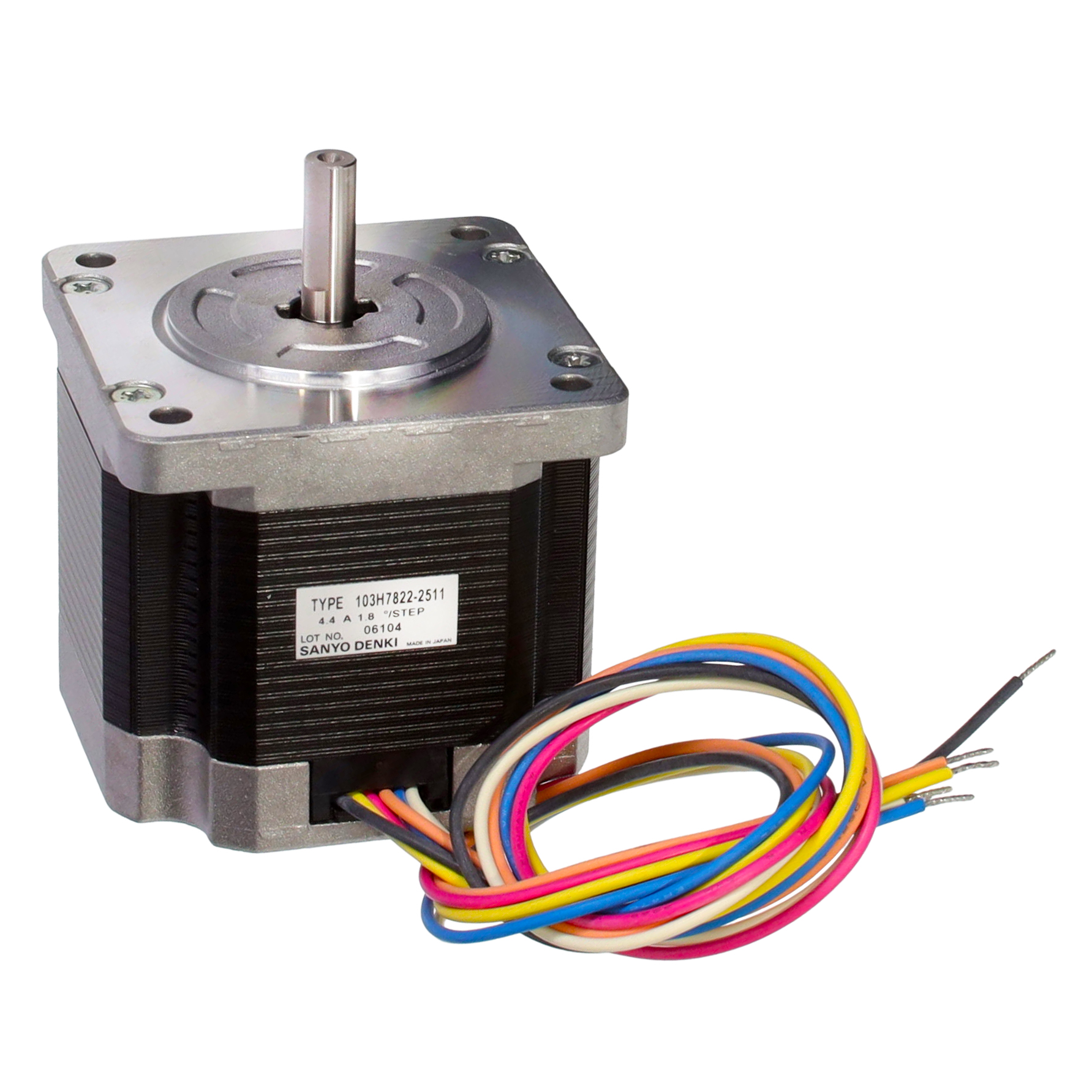

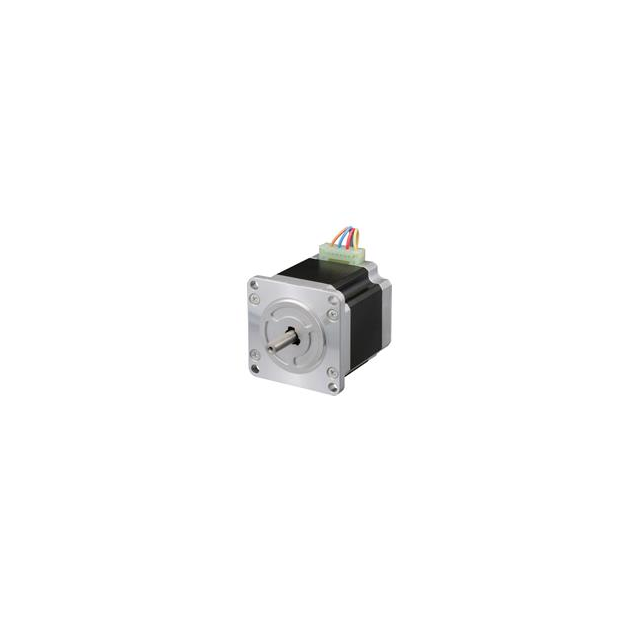

Image shown is a representation only
Manufacturer
Manufacturer No
103H7823-1760
Packaging
Tray
Description
STEP, F2, SQ.60, 1.8, NEMA, , BI
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 23 200.0 Step 4 A 24VDC
Datasheet
Mfr
Sanyo Denki SanMotion Products
Type
Hybrid
Series
H
Coil Type
Bipolar
Packaging
Tray
Step Angle
1.8°
Rotor Inertia
20.2gcm²
Approval Agency
CE, cURus, TUV
Coil Resistance
0.65 Ohms
NEMA Frame Size
23
Voltage - Rated
24VDC
Diameter - Shaft
0.315" (8.00mm)
Size / Dimension
Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Termination Style
Wire Leads
Base Product Number
103H7823
Steps per Revolution
200.0
Current Rating (Amps)
4 A
Mounting Hole Spacing
1.856" (47.14mm)
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
0.811" (20.60mm)
Torque - Holding (oz-in / mNm)
382.4 / 2700
| Attribute | Value |
|---|---|
| Mfr | Sanyo Denki SanMotion Products |
| Type | Hybrid |
| Series | H |
| Coil Type | Bipolar |
| Packaging | Tray |
| Step Angle | 1.8° |
| Rotor Inertia | 20.2gcm² |
| Approval Agency | CE, cURus, TUV |
| Coil Resistance | 0.65 Ohms |
| NEMA Frame Size | 23 |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.315" (8.00mm) |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| Termination Style | Wire Leads |
| Base Product Number | 103H7823 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 4 A |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Torque - Holding (oz-in / mNm) | 382.4 / 2700 |
