Step1: Product

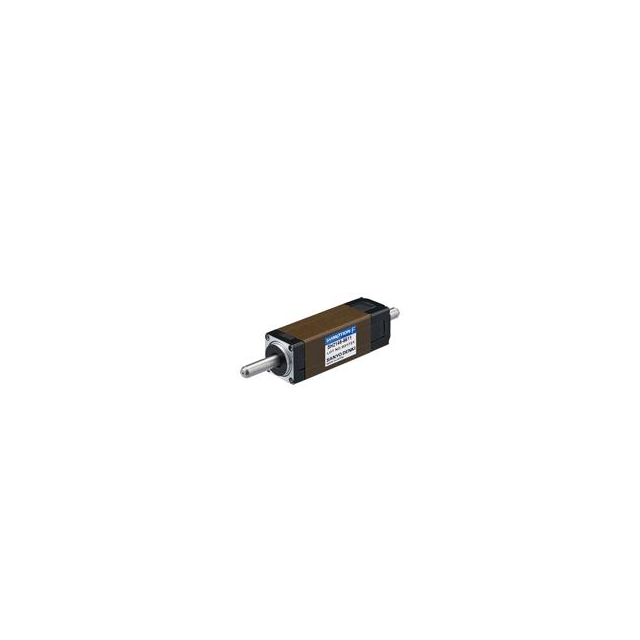

Sanyo Denki SanMotion Products SH2145-5611
Image shown is a representation only
Manufacturer
Manufacturer No
SH2145-5611
Packaging
Box
Description
STEP, F2, SQ.14, 1.8, , , BIPOLA
Detailed Description
Bipolar Stepper Motor Hybrid, Dual Shaft Frame Size 200.0 Step 400 mA 24VDC
Datasheet
Mfr
Sanyo Denki SanMotion Products
Type
Hybrid, Dual Shaft
Series
SH
Coil Type
Bipolar
Packaging
Box
Step Angle
1.8°
Rotor Inertia
0.03gcm²
Approval Agency
CE, cURus, TUV
Coil Resistance
19 Ohms
Voltage - Rated
24VDC
Diameter - Shaft
0.157" (4.00mm)
Size / Dimension
Square - 0.551" x 0.551" (14.00mm x 14.00mm)
Termination Style
Wire Leads
Base Product Number
SH2145
Steps per Revolution
200.0
Current Rating (Amps)
400 mA
Mounting Hole Spacing
0.453" (11.50mm)
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
0.591" (15.00mm)
Torque - Holding (oz-in / mNm)
1.42 / 10
| Attribute | Value |
|---|---|
| Mfr | Sanyo Denki SanMotion Products |
| Type | Hybrid, Dual Shaft |
| Series | SH |
| Coil Type | Bipolar |
| Packaging | Box |
| Step Angle | 1.8° |
| Rotor Inertia | 0.03gcm² |
| Approval Agency | CE, cURus, TUV |
| Coil Resistance | 19 Ohms |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.157" (4.00mm) |
| Size / Dimension | Square - 0.551" x 0.551" (14.00mm x 14.00mm) |
| Termination Style | Wire Leads |
| Base Product Number | SH2145 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 400 mA |
| Mounting Hole Spacing | 0.453" (11.50mm) |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Torque - Holding (oz-in / mNm) | 1.42 / 10 |
