Step1: Product

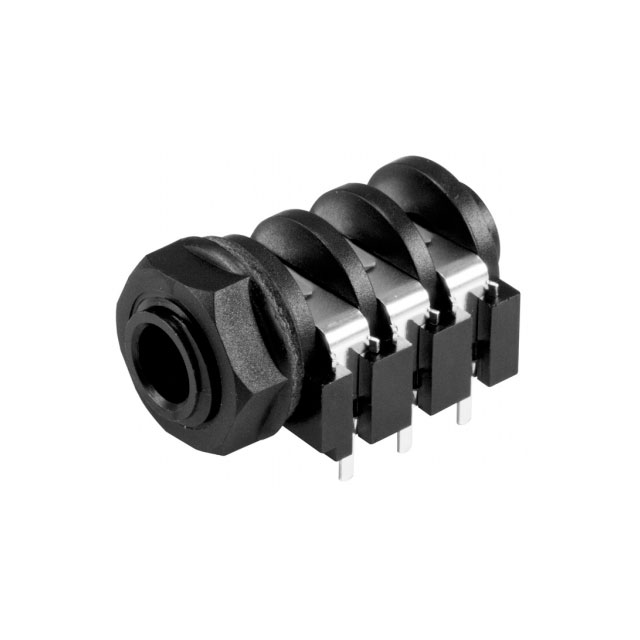

Same Sky (Formerly CUI Devices) SJ-63073E
Image shown is a representation only
Manufacturer
Manufacturer No
SJ-63073E
Packaging
Bag
Description
AUDIO JACK, 6.35 MM, HORIZONTAL,
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
SJ
Features
Mounting Hardware, Thread Lock
Packaging
Bag
Shielding
Unshielded
Body Color
Black
Part Status
Obsolete
Termination
Solder
Thread Size
7/16"-20
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Voltage - Rated
12VDC
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA66), Nylon 6/6
Internal Switch(s)
Three Switches
Base Product Number
SJ-63
Mating Length/Depth
1.220" (31.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Silver
Number of Positions/Contacts
3 Conductors, 6 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | SJ |
| Features | Mounting Hardware, Thread Lock |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Obsolete |
| Termination | Solder |
| Thread Size | 7/16"-20 |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Voltage - Rated | 12VDC |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Internal Switch(s) | Three Switches |
| Base Product Number | SJ-63 |
| Mating Length/Depth | 1.220" (31.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 3 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
