Step1: Product

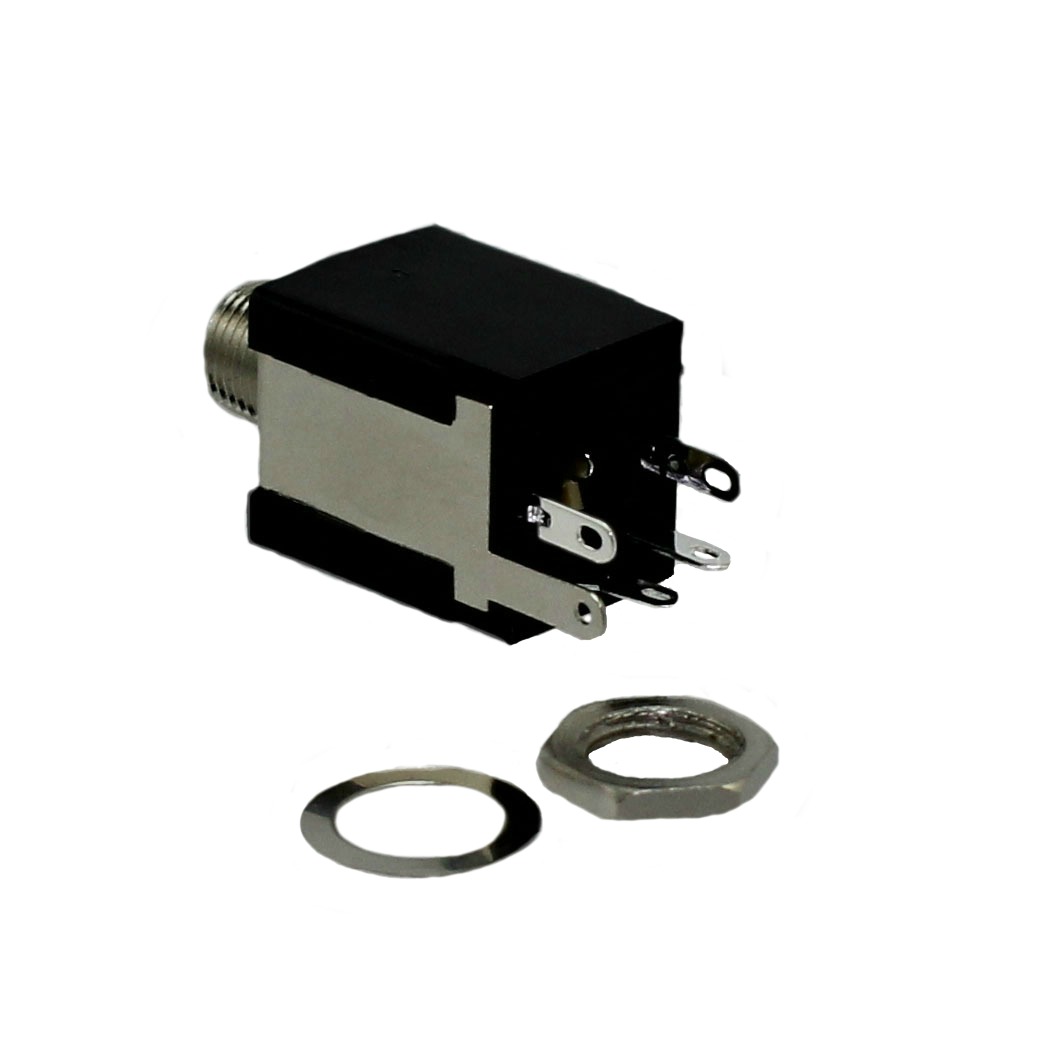

Same Sky (Formerly CUI Devices) SJ-63013G
Image shown is a representation only
Manufacturer
Manufacturer No
SJ-63013G
Packaging
Bag
Description
AUDIO JACK, 6.35 MM, VERTICAL, 3
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
SJ
Features
Cover, Mounting Hardware, Thread Lock
Packaging
Bag
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Solder Eyelet(s)
Thread Size
M9x0.75
Signal Lines
Stereo (3 Conductor, TRS)
Body Material
Brass
Mounting Type
Panel Mount
Connector Type
Phone Jack
Actual Diameter
0.252" (6.40mm)
Voltage - Rated
12VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Polyoxymethylene (POM)
Internal Switch(s)
Single Switch
Base Product Number
SJ-63
Mating Length/Depth
1.220" (31.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Silver
Number of Positions/Contacts
3 Conductors, 5 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | SJ |
| Features | Cover, Mounting Hardware, Thread Lock |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Thread Size | M9x0.75 |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Body Material | Brass |
| Mounting Type | Panel Mount |
| Connector Type | Phone Jack |
| Actual Diameter | 0.252" (6.40mm) |
| Voltage - Rated | 12VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polyoxymethylene (POM) |
| Internal Switch(s) | Single Switch |
| Base Product Number | SJ-63 |
| Mating Length/Depth | 1.220" (31.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
