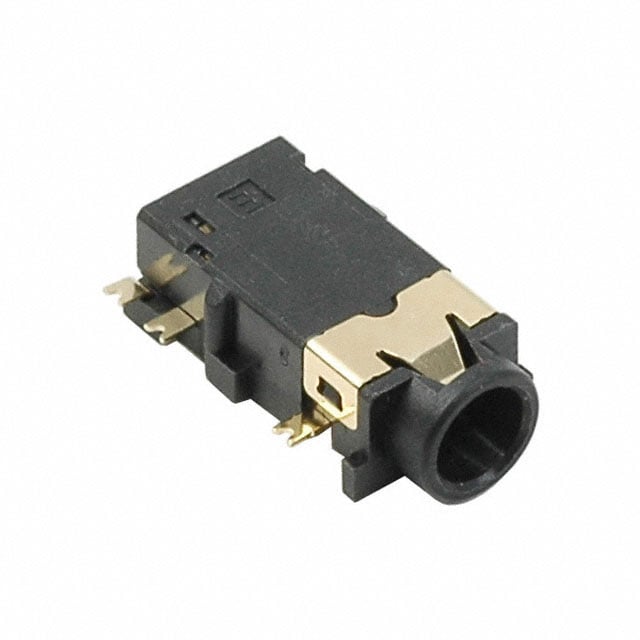

Same Sky (Formerly CUI Devices) SJ-43504-SMT-TR
Image shown is a representation only
Manufacturer
Manufacturer No
SJ-43504-SMT-TR
Quantity
250
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN JACK 4COND 3.5MM SMD R/A
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
SJ
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Body Color
Gold, Black
Part Status
Active
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Body Material
Brass
Mounting Type
Board Cutout, Surface Mount, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Voltage - Rated
12VDC
Contact Material
Copper Alloy
Housing Material
Polyamide (PA6T), Nylon 6T
Internal Switch(s)
Two Switches
Base Product Number
SJ-43
Mating Length/Depth
0.551" (14.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-20°C ~ 85°C
Contact Material - Plating
Gold
Number of Positions/Contacts
4 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | SJ |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Body Color | Gold, Black |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Body Material | Brass |
| Mounting Type | Board Cutout, Surface Mount, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Voltage - Rated | 12VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Internal Switch(s) | Two Switches |
| Base Product Number | SJ-43 |
| Mating Length/Depth | 0.551" (14.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -20°C ~ 85°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 4 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
