Step1: Product

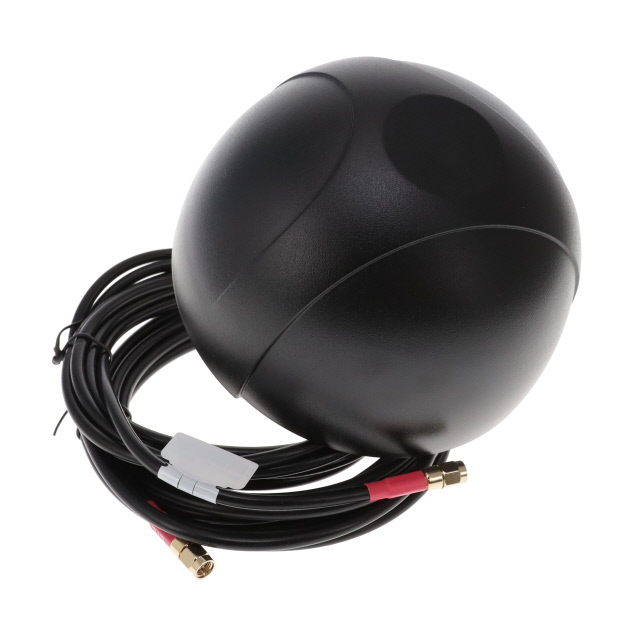

Red Lion Controls ANT-MA741ABI001
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-MA741ABI001
Packaging
Bulk
Description
RF ANT 829MHZ/1.94GHZ DOME SMA
Detailed Description
RF ANTENNA CDMA, HSPA, GPRS, GSM, LTE, UMTS Dome SMA Male Panel Mount
DataSheet
Gain
3.2dBi
Series
Pantheon
Packaging
Bulk
Part Status
Obsolete
Return Loss
-7dB
Termination
SMA Male
Antenna Type
Dome
Applications
CDMA, HSPA, GPRS, GSM, LTE, UMTS
Height (Max)
3.374" (85.70mm)
Manufacturer
Red Lion Controls
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz
Number of Bands
4
Ingress Protection
IP67
RF Family/Standard
Cellular
Base Product Number
ANT-MA741
Frequency (Center/Band)
829MHz, 1.94GHz, 2.5GHz, 3.2GHz
| Attribute | Value |
|---|---|
| Gain | 3.2dBi |
| Series | Pantheon |
| Packaging | Bulk |
| Part Status | Obsolete |
| Return Loss | -7dB |
| Termination | SMA Male |
| Antenna Type | Dome |
| Applications | CDMA, HSPA, GPRS, GSM, LTE, UMTS |
| Height (Max) | 3.374" (85.70mm) |
| Manufacturer | Red Lion Controls |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz |
| Number of Bands | 4 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular |
| Base Product Number | ANT-MA741 |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.5GHz, 3.2GHz |
