Step1: Product

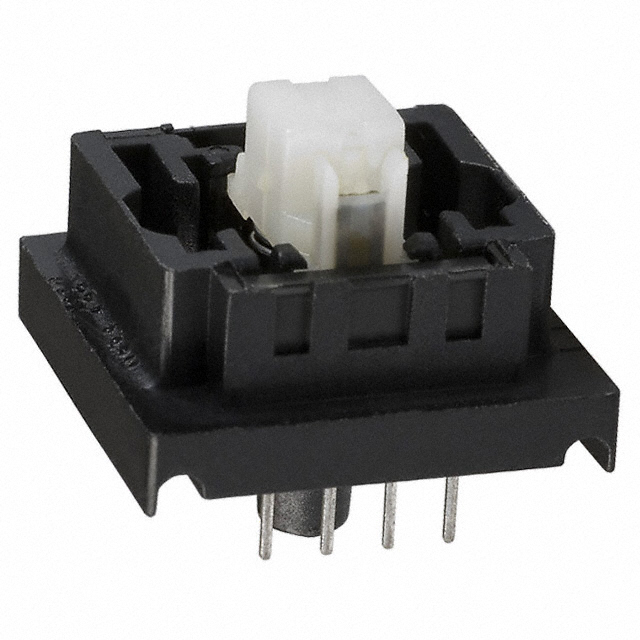

RAFI 3.13.001.010/0000
Image shown is a representation only
Manufacturer
Manufacturer No
3.13.001.010/0000
Quantity
1
Availability
In Stock
Packaging
Bulk
Description
SWITCH TACT SPST MOM RS76C
Detailed Description
Pushbutton Hall Effect Switch 16mA 5.25 V
DataSheet
Series
RS76
Circuit
Single
Packaging
Bulk
Body Color
Black
Part Status
Active
Manufacturer
RAFI
Travel Range
4.0mm
Actuator Type
Plunger for Cap
Mounting Type
Through Hole
Supply Current
5mA - Max
Supply Voltage
4.75 ~ 5.25VDC
Operating Force
71gf
Switch Function
Off-Mom
Termination Style
PC Pin
Ingress Protection
IP40
Base Product Number
3.13.001
Operating Temperature
0°C ~ 70°C
Current - Output (Max)
16mA
Voltage - Output (Max)
5.25 V
| Attribute | Value |
|---|---|
| Series | RS76 |
| Circuit | Single |
| Packaging | Bulk |
| Body Color | Black |
| Part Status | Active |
| Manufacturer | RAFI |
| Travel Range | 4.0mm |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole |
| Supply Current | 5mA - Max |
| Supply Voltage | 4.75 ~ 5.25VDC |
| Operating Force | 71gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Ingress Protection | IP40 |
| Base Product Number | 3.13.001 |
| Operating Temperature | 0°C ~ 70°C |
| Current - Output (Max) | 16mA |
| Voltage - Output (Max) | 5.25 V |
