Step1: Product

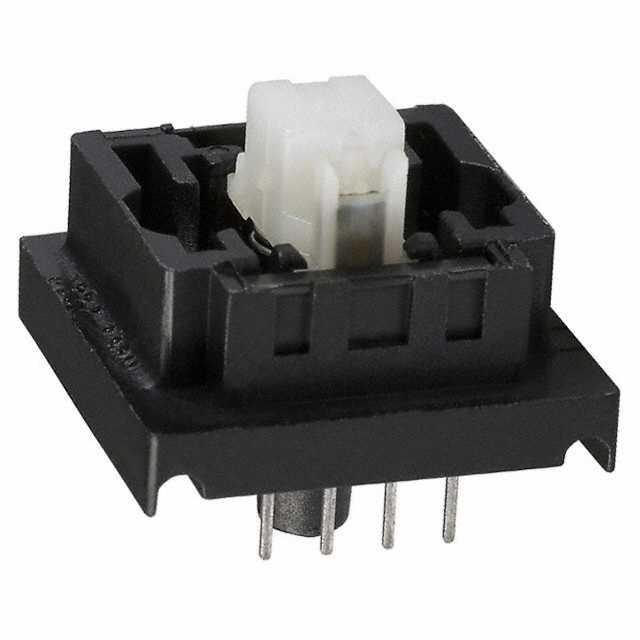

RAFI 3.13001.1101350
Image shown is a representation only
Manufacturer
Manufacturer No
3.13001.1101350
Packaging
Tube
Description
SWITCH PUSH HALL EFF 16MA 5.25V
Detailed Description
Pushbutton Hall Effect Switch 16mA 5.25 V
Series
RS76
Circuit
Single
Packaging
Tube
Part Status
Obsolete
Manufacturer
RAFI
Actuator Type
Plunger for Cap
Mounting Type
Through Hole
Supply Current
5mA - Max
Supply Voltage
4.75 ~ 5.25VDC
Switch Function
Off-Mom
Termination Style
PC Pin
Ingress Protection
IP40
Base Product Number
3.13.001
Operating Temperature
0°C ~ 70°C
Current - Output (Max)
16mA
Voltage - Output (Max)
5.25 V
| Attribute | Value |
|---|---|
| Series | RS76 |
| Circuit | Single |
| Packaging | Tube |
| Part Status | Obsolete |
| Manufacturer | RAFI |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole |
| Supply Current | 5mA - Max |
| Supply Voltage | 4.75 ~ 5.25VDC |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Ingress Protection | IP40 |
| Base Product Number | 3.13.001 |
| Operating Temperature | 0°C ~ 70°C |
| Current - Output (Max) | 16mA |
| Voltage - Output (Max) | 5.25 V |
