Step1: Product
RAFI 3.13.007.001/0152

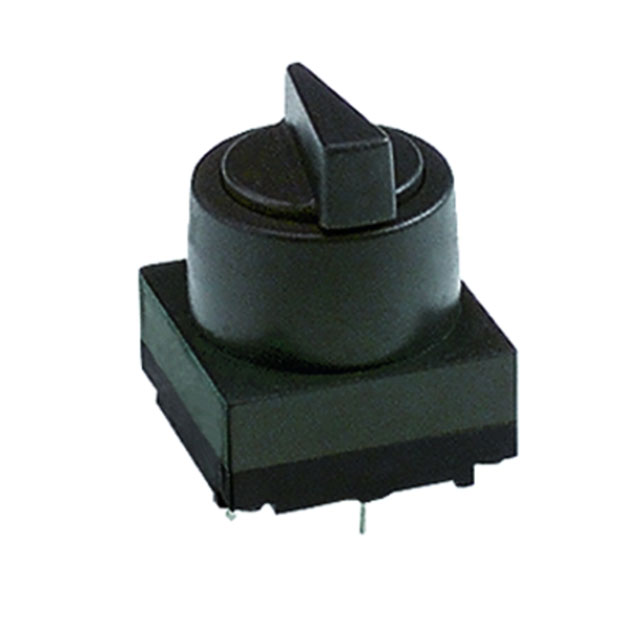

Image shown is a representation only
Manufacturer
Manufacturer No
3.13.007.001/0152
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
SWITCH SELECT 2P SPDT 100MA 35V
Detailed Description
Selector Switch 2 Position SPDT 100mA (AC/DC) 35 V Through Hole
DataSheet
Type
Standard
Circuit
SPDT
Features
Bezel - Round
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Manufacturer
RAFI
Mounting Type
Through Hole
Electrical Life
50,000 Cycles
Mechanical Life
50,000 Cycles
Switch Function
On-On
Termination Style
PC Pin
Ingress Protection
IP40
Base Product Number
3.13.007
Depth Behind Flange
24.00mm
Number of Positions
2
Voltage Rating - AC
35 V
Voltage Rating - DC
35 V
Current Rating (Amps)
100mA (AC/DC)
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Type | Standard |
| Circuit | SPDT |
| Features | Bezel - Round |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Manufacturer | RAFI |
| Mounting Type | Through Hole |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Ingress Protection | IP40 |
| Base Product Number | 3.13.007 |
| Depth Behind Flange | 24.00mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 35 V |
| Voltage Rating - DC | 35 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Operating Temperature | -25°C ~ 70°C |
