Step1: Product
Radiall USA, Inc. R161083000

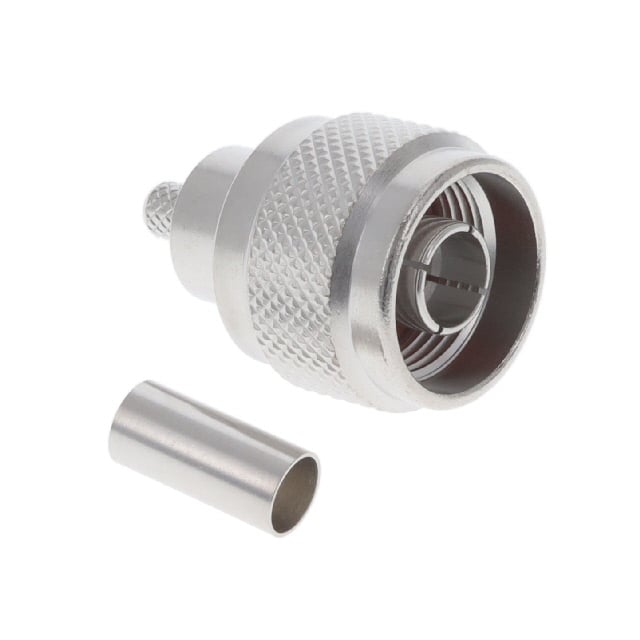

Image shown is a representation only
Manufacturer
Manufacturer No
R161083000
Packaging
Box
Description
N / STRAIGHT PLUG FULL CRIMP-TYP
Detailed Description
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Box
Body Finish
White Bronze
Cable Group
RG-142, 223, 400
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
0.15dB
Voltage Rating
850 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Ingress Protection
IP65 - Dust Tight, Water Resistant
Shield Termination
Crimp
Base Product Number
R16108
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | White Bronze |
| Cable Group | RG-142, 223, 400 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | 0.15dB |
| Voltage Rating | 850 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Shield Termination | Crimp |
| Base Product Number | R16108 |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
