Step1: Product

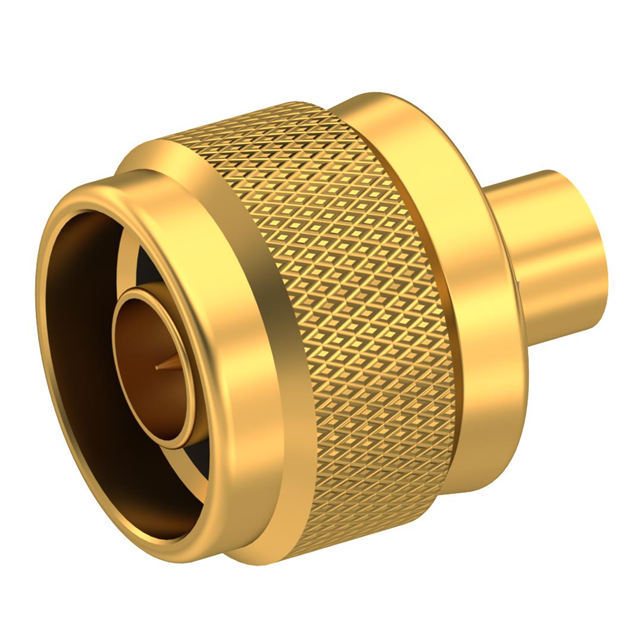

Radiall USA, Inc. R161054000
Image shown is a representation only
Manufacturer
Manufacturer No
R161054000
Quantity
78
Availability
In Stock
Packaging
Box
Description
N / STRAIGHT PLUG SOLDER TYPE CA
Detailed Description
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Box
Body Finish
Gold
Cable Group
RG-401 (.250" Semi Rigid)
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
0.15dB
Voltage Rating
1400 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
R16105
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | Gold |
| Cable Group | RG-401 (.250" Semi Rigid) |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | 0.15dB |
| Voltage Rating | 1400 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | R16105 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
