Step1: Product
Radiall USA, Inc. R161010000

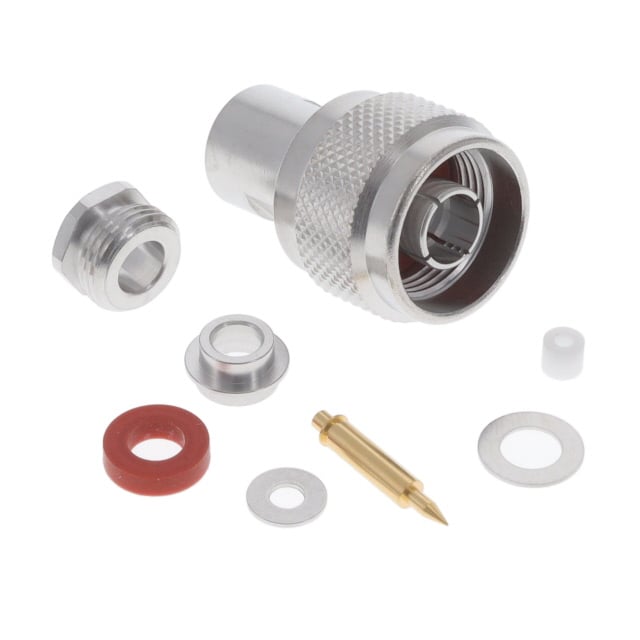

Image shown is a representation only
Manufacturer
Manufacturer No
R161010000
Quantity
23
Availability
In Stock
Packaging
Bulk
Description
N M STR PF5/50 C50
Detailed Description
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
Radiall USA, Inc.
Includes
8 pcs - 1 Connector, 1 Braid Clamp, 1 Contact, 1 Clamp Nut, 1 Gasket, 1 SLeeve, 2 Washer
Impedance
50 Ohms
Packaging
Bulk
Cable Group
RG-58, 141, 142, 223, 400
Part Status
Active
Body Material
Brass
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Voltage Rating
850 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Shield Termination
Clamp
Base Product Number
R16101
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Includes | 8 pcs - 1 Connector, 1 Braid Clamp, 1 Contact, 1 Clamp Nut, 1 Gasket, 1 SLeeve, 2 Washer |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Cable Group | RG-58, 141, 142, 223, 400 |
| Part Status | Active |
| Body Material | Brass |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Voltage Rating | 850 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Shield Termination | Clamp |
| Base Product Number | R16101 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
