Step1: Product

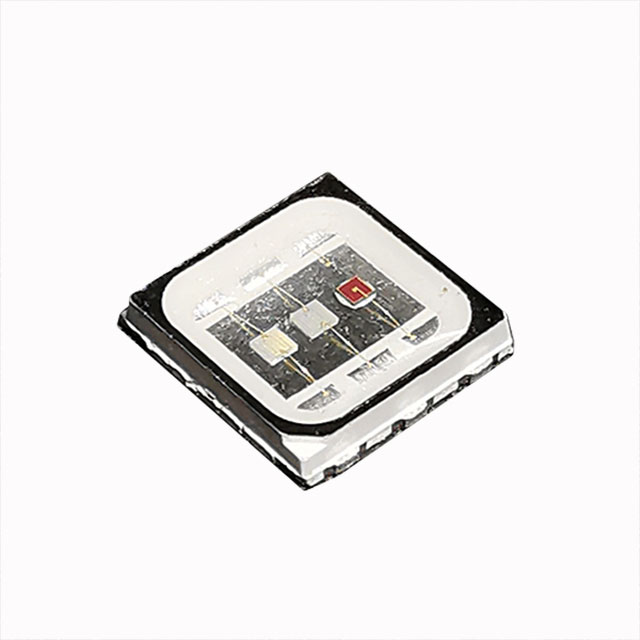

QT Brightek (QTB) QBHP688-RGB3H
Image shown is a representation only
Manufacturer
Manufacturer No
QBHP688-RGB3H
Package
6-SMD, J-Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB 620NM/525NM/465NM 6PLCC
Detailed Description
LED Lighting Color PLCC6 Red, Green, Blue (RGB) 620nm Red, 525nm Green, 465nm Blue 6-SMD, J-Lead
DataSheet
Mfr
QT Brightek (QTB)
Color
Red, Green, Blue (RGB)
Series
PLCC6
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Wavelength
620nm Red, 525nm Green, 465nm Blue
Part Status
Active
Current - Max
160mA Red, 160mA Green, 160mA Blue
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
150mA Red, 150mA Green, 150mA Blue
Package / Case
6-SMD, J-Lead
Size / Dimension
0.197" L x 0.197" W (5.00mm x 5.00mm)
Temperature - Test
25°C
Base Product Number
QBHP688
Height - Seated (Max)
0.059" (1.50mm)
Supplier Device Package
6-PLCC
Lumens/Watt @ Current - Test
36 lm/W Red, 53 lm/W Green, 17 lm/W Blue
Voltage - Forward (Vf) (Typ)
2.4V Red, 3.5V Green, 3.1V Blue
Luminous Flux @ Current/Temperature
13lm Red, 28lm Green, 8lm Blue
| Attribute | Value |
|---|---|
| Mfr | QT Brightek (QTB) |
| Color | Red, Green, Blue (RGB) |
| Series | PLCC6 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Wavelength | 620nm Red, 525nm Green, 465nm Blue |
| Part Status | Active |
| Current - Max | 160mA Red, 160mA Green, 160mA Blue |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 150mA Red, 150mA Green, 150mA Blue |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Temperature - Test | 25°C |
| Base Product Number | QBHP688 |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Supplier Device Package | 6-PLCC |
| Lumens/Watt @ Current - Test | 36 lm/W Red, 53 lm/W Green, 17 lm/W Blue |
| Voltage - Forward (Vf) (Typ) | 2.4V Red, 3.5V Green, 3.1V Blue |
| Luminous Flux @ Current/Temperature | 13lm Red, 28lm Green, 8lm Blue |
