Step1: Product

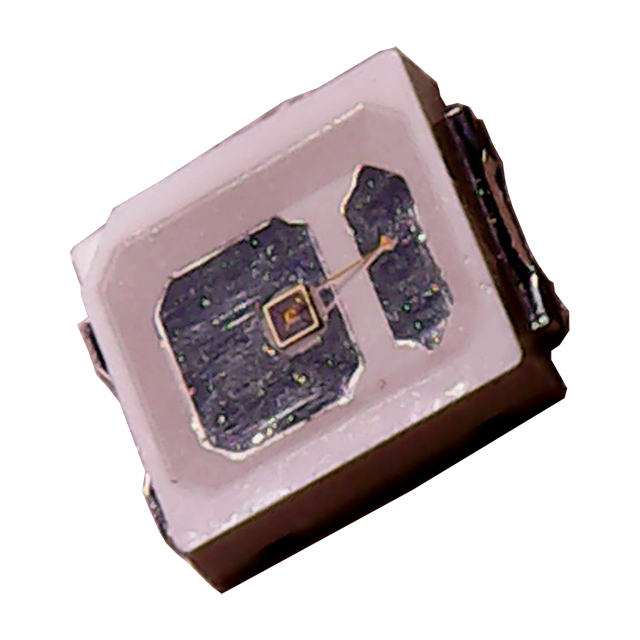

QT Brightek (QTB) QBHP686-IR4D
Image shown is a representation only
Manufacturer
Manufacturer No
QBHP686-IR4D
Package
1411 (3528 Metric)
Packaging
Tape & Reel (TR)
Description
2835 PLCC2/ IR 740NM/ IE=6.75MW/
Detailed Description
Infrared (IR) Emitter 740nm 1.8V 100mA 5.6mW/sr @ 50mA 120° 1411 (3528 Metric)
DataSheet
Type
Infrared (IR)
Series
Mid Power
Packaging
Tape & Reel (TR)
Wavelength
740nm
Orientation
Top View
Part Status
Active
Manufacturer
QT Brightek (QTB)
Mounting Type
Surface Mount
Viewing Angle
120°
Package / Case
1411 (3528 Metric)
Base Product Number
QBHP686
Operating Temperature
-40°C ~ 80°C
Voltage - Forward (Vf) (Typ)
1.8V
Current - DC Forward (If) (Max)
100mA
Radiant Intensity (Ie) Min @ If
5.6mW/sr @ 50mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Series | Mid Power |
| Packaging | Tape & Reel (TR) |
| Wavelength | 740nm |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | QT Brightek (QTB) |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Package / Case | 1411 (3528 Metric) |
| Base Product Number | QBHP686 |
| Operating Temperature | -40°C ~ 80°C |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 5.6mW/sr @ 50mA |
