Step1: Product
Pulse Electronics PF0553.153NL

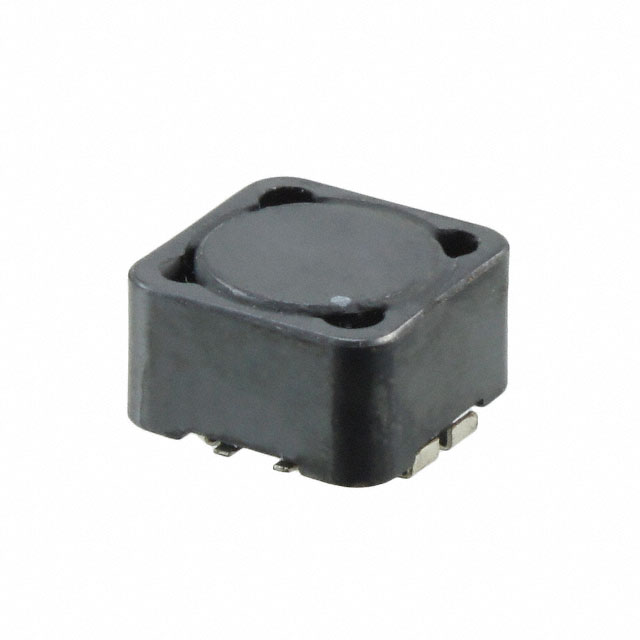

Image shown is a representation only
Manufacturer
Manufacturer No
PF0553.153NL
Package
Nonstandard
Packaging
Tray
Description
INDUCT ARRAY 2 COIL 14UH SMD
Detailed Description
Shielded 2 Coil Inductor Array 56 µH Inductance - Connected in Series 14 µH Inductance - Connected in Parallel 24mOhm Max DC Resistance (DCR) - Parallel 5 A Nonstandard
DataSheet
Height
0.343" (8.71mm)
Series
PF0553NL
Packaging
Tray
Shielding
Shielded
Tolerance
±20%
Part Status
Active
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.492" L x 0.492" W (12.50mm x 12.50mm)
Operating Temperature
-40°C ~ 125°C
Current Rating - Series
2.5 A
Current Rating - Parallel
5 A
Current Saturation - Series
4.8 A
DC Resistance (DCR) - Series
96mOhm Max
Current Saturation - Parallel
9.6 A
DC Resistance (DCR) - Parallel
24mOhm Max
Inductance - Connected In Series
56 µH
Inductance - Connected In Parallel
14 µH
| Attribute | Value |
|---|---|
| Height | 0.343" (8.71mm) |
| Series | PF0553NL |
| Packaging | Tray |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Active |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 2.5 A |
| Current Rating - Parallel | 5 A |
| Current Saturation - Series | 4.8 A |
| DC Resistance (DCR) - Series | 96mOhm Max |
| Current Saturation - Parallel | 9.6 A |
| DC Resistance (DCR) - Parallel | 24mOhm Max |
| Inductance - Connected In Series | 56 µH |
| Inductance - Connected In Parallel | 14 µH |
