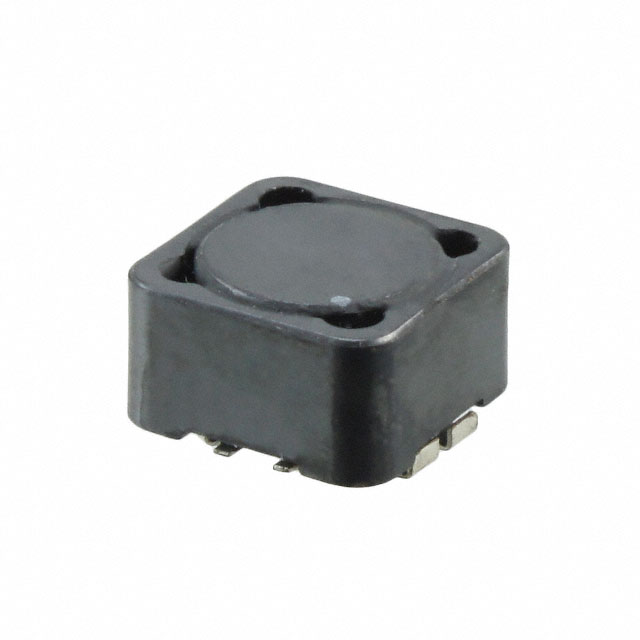

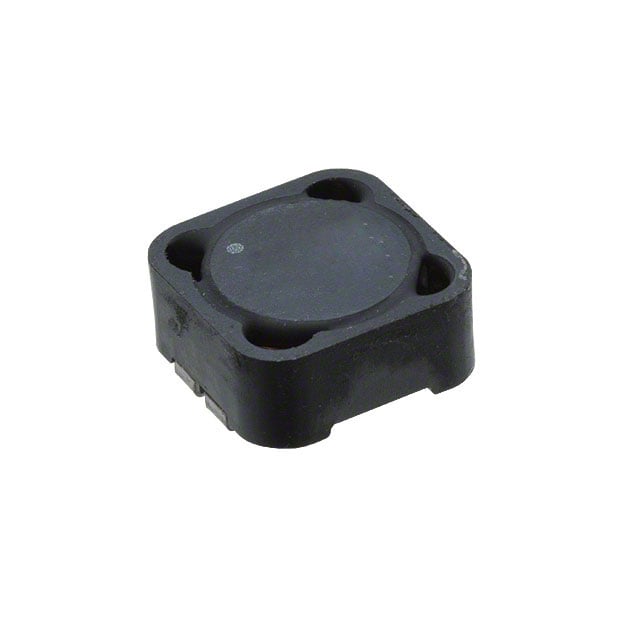

Pulse Electronics PF0552.223NLT
Image shown is a representation only
Manufacturer
Manufacturer No
PF0552.223NLT
Quantity
489
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
INDUCT ARRAY 2 COIL 22UH SMD
Detailed Description
Shielded 2 Coil Inductor Array 89 µH Inductance - Connected in Series 22 µH Inductance - Connected in Parallel 35mOhm Max DC Resistance (DCR) - Parallel 4.6 A Nonstandard
DataSheet
Height
0.236" (6.00mm)
Series
PF0552NL
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Part Status
Active
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.492" L x 0.492" W (12.50mm x 12.50mm)
Operating Temperature
-40°C ~ 125°C
Current Rating - Series
2.3 A
Current Rating - Parallel
4.6 A
Current Saturation - Series
2.4 A
DC Resistance (DCR) - Series
140mOhm Max
Current Saturation - Parallel
4.8 A
DC Resistance (DCR) - Parallel
35mOhm Max
Inductance - Connected In Series
89 µH
Inductance - Connected In Parallel
22 µH
| Attribute | Value |
|---|---|
| Height | 0.236" (6.00mm) |
| Series | PF0552NL |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Active |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 2.3 A |
| Current Rating - Parallel | 4.6 A |
| Current Saturation - Series | 2.4 A |
| DC Resistance (DCR) - Series | 140mOhm Max |
| Current Saturation - Parallel | 4.8 A |
| DC Resistance (DCR) - Parallel | 35mOhm Max |
| Inductance - Connected In Series | 89 µH |
| Inductance - Connected In Parallel | 22 µH |
