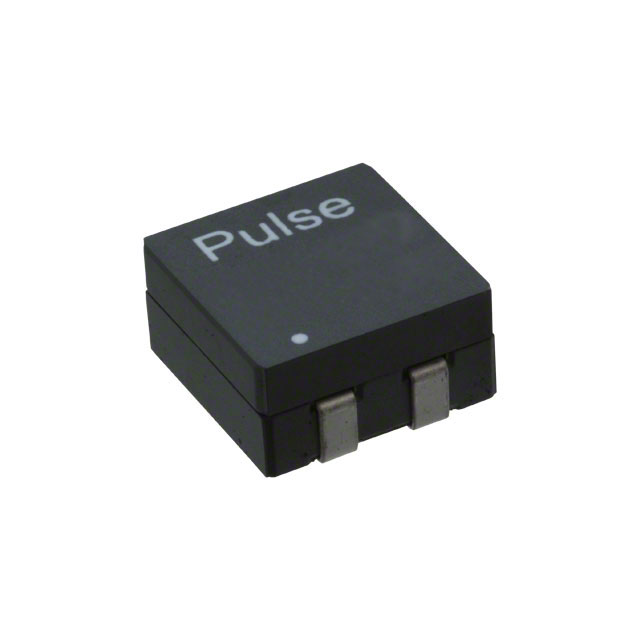

Pulse Electronics PA0766.421NLT
Image shown is a representation only
Manufacturer
Manufacturer No
PA0766.421NLT
Package
Nonstandard
Packaging
Bulk
Description
PA0766.421NLT
Detailed Description
Unshielded 2 Coil Inductor Array 870 nH Inductance - Connected in Series 218 nH Inductance - Connected in Parallel 0.38mOhm Max DC Resistance (DCR) - Parallel 50 A Nonstandard
DataSheet
Height
0.276" (7.00mm)
Series
PA0766NL
Packaging
Bulk
Shielding
Unshielded
Tolerance
±20%
Part Status
Active
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.551" L x 0.531" W (14.00mm x 13.50mm)
Operating Temperature
-40°C ~ 130°C
Current Rating - Series
25 A
Current Rating - Parallel
50 A
DC Resistance (DCR) - Series
1.5mOhm Max
DC Resistance (DCR) - Parallel
0.38mOhm Max
Inductance - Connected In Series
870 nH
Inductance - Connected In Parallel
218 nH
| Attribute | Value |
|---|---|
| Height | 0.276" (7.00mm) |
| Series | PA0766NL |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Part Status | Active |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.551" L x 0.531" W (14.00mm x 13.50mm) |
| Operating Temperature | -40°C ~ 130°C |
| Current Rating - Series | 25 A |
| Current Rating - Parallel | 50 A |
| DC Resistance (DCR) - Series | 1.5mOhm Max |
| DC Resistance (DCR) - Parallel | 0.38mOhm Max |
| Inductance - Connected In Series | 870 nH |
| Inductance - Connected In Parallel | 218 nH |
