Step1: Product
Pulse Electronics PE-68383NLT

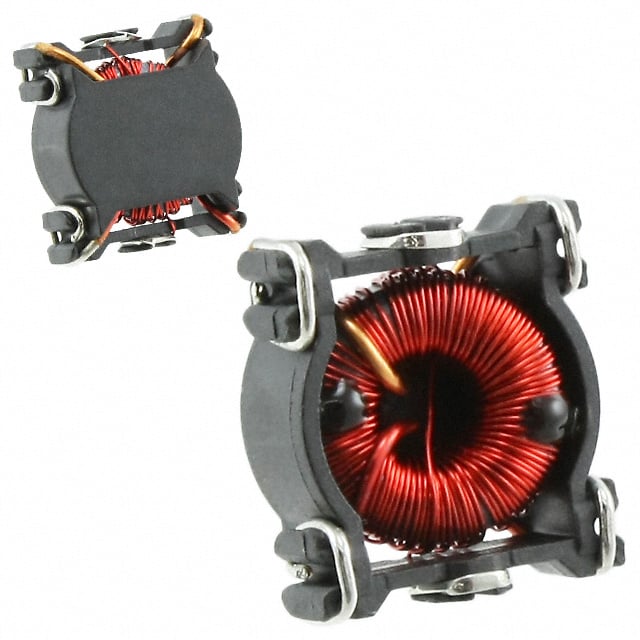

Image shown is a representation only
Manufacturer
Manufacturer No
PE-68383NLT
Quantity
300
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CURR SENSE XFMR 1:1:200 SMD
Detailed Description
1:1:200 Current Sense Transformer 50kHz ~ 500kHz 1.15mOhm Primary, 3.9Ohm Secondary 59.2 mH Surface Mount
Datasheet
Type
Invasive
Series
PE-68XXXNL
Packaging
Tape & Reel (TR); Cut Tape (CT)
Inductance
59.2 mH
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Frequency Range
50kHz ~ 500kHz
Size / Dimension
0.495" L x 0.490" W (12.57mm x 12.45mm)
DC Resistance (DCR)
1.15mOhm Primary, 3.9Ohm Secondary
Height - Seated (Max)
0.280" (7.11mm)
Turns Ratio - Primary:Secondary
1:1:200
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | PE-68XXXNL |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Inductance | 59.2 mH |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Frequency Range | 50kHz ~ 500kHz |
| Size / Dimension | 0.495" L x 0.490" W (12.57mm x 12.45mm) |
| DC Resistance (DCR) | 1.15mOhm Primary, 3.9Ohm Secondary |
| Height - Seated (Max) | 0.280" (7.11mm) |
| Turns Ratio - Primary:Secondary | 1:1:200 |
