Step1: Product

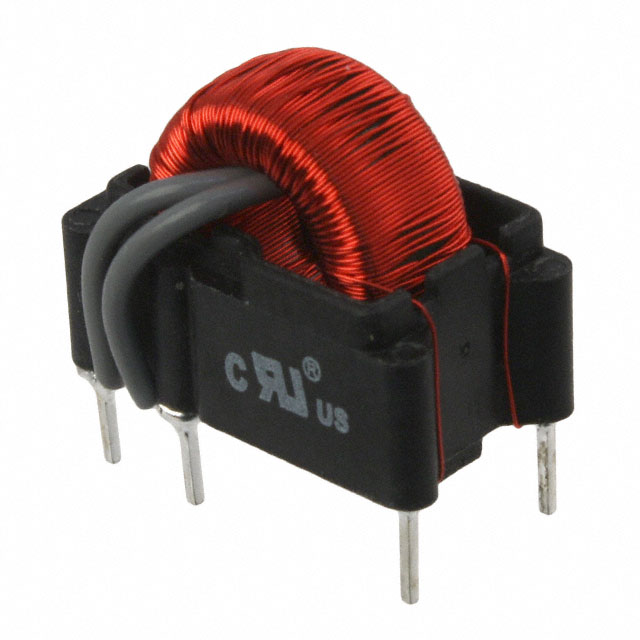

Pulse Electronics P0581NL
Image shown is a representation only
Manufacturer
Manufacturer No
P0581NL
Quantity
63
Availability
In Stock
Packaging
Tray
Description
CURR SENSE XFMR 200:1:1 34A T/H
Detailed Description
34 A 200:1:1 Current Sense Transformer 50kHz ~ 500kHz 2.8Ohm Primary, 1.7mOhm Secondary 76 mH Through Hole
DataSheet
Type
Invasive
Series
THT
Weight
0.011 lb (4.99 g)
Packaging
Tray
Inductance
76 mH
Part Status
Active
Manufacturer
Pulse Electronics
Mounting Type
Through Hole
Frequency Range
50kHz ~ 500kHz
Size / Dimension
0.810" L x 0.580" W (20.57mm x 14.73mm)
Termination Style
PC Pin
DC Resistance (DCR)
2.8Ohm Primary, 1.7mOhm Secondary
Current Rating (Amps)
34 A
Height - Seated (Max)
0.750" (19.05mm)
Turns Ratio - Primary:Secondary
200:1:1
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | THT |
| Weight | 0.011 lb (4.99 g) |
| Packaging | Tray |
| Inductance | 76 mH |
| Part Status | Active |
| Manufacturer | Pulse Electronics |
| Mounting Type | Through Hole |
| Frequency Range | 50kHz ~ 500kHz |
| Size / Dimension | 0.810" L x 0.580" W (20.57mm x 14.73mm) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 2.8Ohm Primary, 1.7mOhm Secondary |
| Current Rating (Amps) | 34 A |
| Height - Seated (Max) | 0.750" (19.05mm) |
| Turns Ratio - Primary:Secondary | 200:1:1 |
