Step1: Product

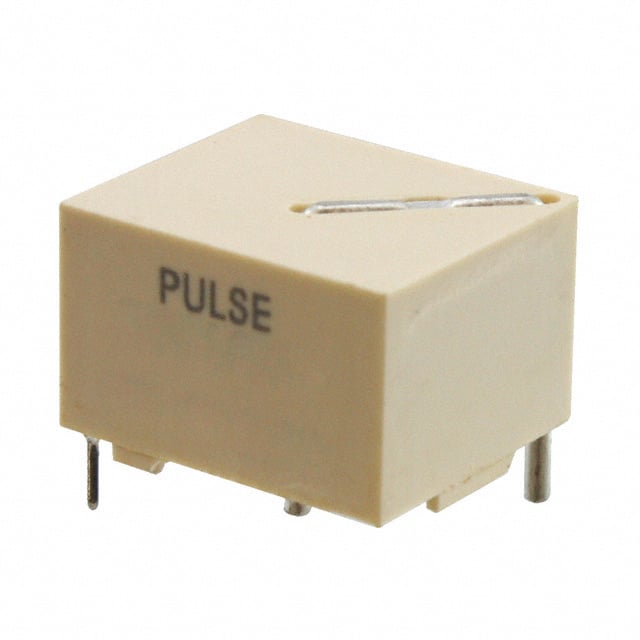

Pulse Electronics FIS115NL
Image shown is a representation only
Manufacturer
Manufacturer No
FIS115NL
Quantity
500
Availability
In Stock
Packaging
Tube
Description
CURR SENSE XFMR 1:100 25A T/H
Detailed Description
1:100 Current Sense Transformer 500kHz Max 2Ohm Max 18 mH Through Hole
DataSheet
Type
Invasive
Series
FIS 1X5
Weight
0.017 lb (7.71 g)
Packaging
Tube
Inductance
18 mH
Part Status
Active
Manufacturer
Pulse Electronics
Mounting Type
Through Hole
ET (Volt-Time)
350VµS
Frequency Range
500kHz Max
Size / Dimension
0.693" L x 0.591" W (17.60mm x 15.00mm)
Termination Style
PC Pin
DC Resistance (DCR)
2Ohm Max
Height - Seated (Max)
0.492" (12.50mm)
Turns Ratio - Primary:Secondary
1:100
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | FIS 1X5 |
| Weight | 0.017 lb (7.71 g) |
| Packaging | Tube |
| Inductance | 18 mH |
| Part Status | Active |
| Manufacturer | Pulse Electronics |
| Mounting Type | Through Hole |
| ET (Volt-Time) | 350VµS |
| Frequency Range | 500kHz Max |
| Size / Dimension | 0.693" L x 0.591" W (17.60mm x 15.00mm) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 2Ohm Max |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Turns Ratio - Primary:Secondary | 1:100 |
