Step1: Product

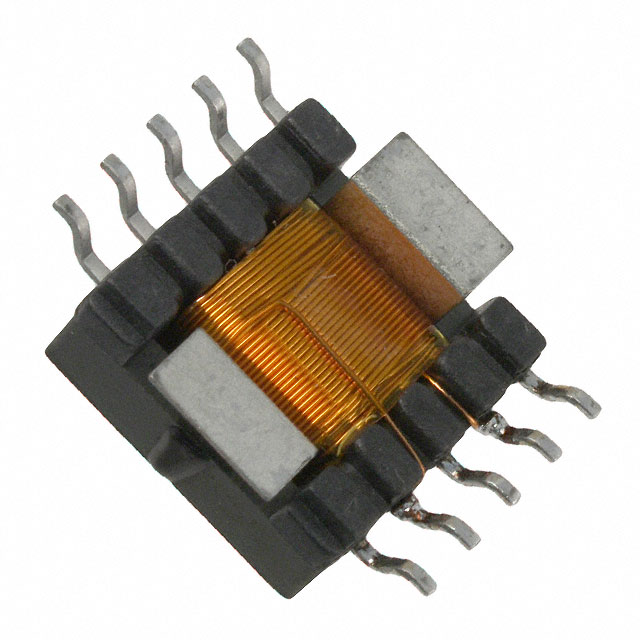

Pulse Electronics PB0027
Image shown is a representation only
Manufacturer
Manufacturer No
PB0027
Packaging
Tray
Description
CURR SENSE XFMR 200:1 35A SMD
Detailed Description
35 A 200:1 Current Sense Transformer 50kHz ~ 500kHz 2.8mOhm Primary, 2.9Ohm Secondary 22.4 mH Surface Mount
Datasheet
Type
Invasive
Weight
0.010 lb (4.70 g)
Packaging
Tray
Inductance
22.4 mH
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Frequency Range
50kHz ~ 500kHz
Size / Dimension
0.784" L x 0.570" W (19.91mm x 14.48mm)
Termination Style
Gull Wing
DC Resistance (DCR)
2.8mOhm Primary, 2.9Ohm Secondary
Current Rating (Amps)
35 A
Height - Seated (Max)
0.394" (10.00mm)
Turns Ratio - Primary:Secondary
200:1
| Attribute | Value |
|---|---|
| Type | Invasive |
| Weight | 0.010 lb (4.70 g) |
| Packaging | Tray |
| Inductance | 22.4 mH |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Frequency Range | 50kHz ~ 500kHz |
| Size / Dimension | 0.784" L x 0.570" W (19.91mm x 14.48mm) |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 2.8mOhm Primary, 2.9Ohm Secondary |
| Current Rating (Amps) | 35 A |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Turns Ratio - Primary:Secondary | 200:1 |
