Step1: Product

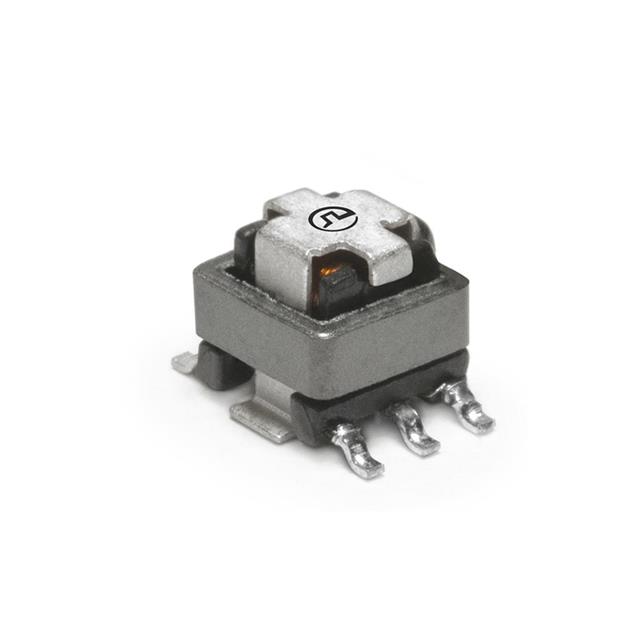

Pulse Electronics PA1005.030NL
Image shown is a representation only
Manufacturer
Manufacturer No
PA1005.030NL
Packaging
Tray
Description
CURR SENSE XFMR 1:30 20A SMD
Detailed Description
20 A 1:30 Current Sense Transformer 20kHz ~ 1MHz 0.75mOhm Primary, 870mOhm Secondary Max 180 µH Surface Mount
DataSheet
Type
Invasive
Series
PA1005.XXXNL
Packaging
Tray
Inductance
180 µH
Part Status
Active
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Frequency Range
20kHz ~ 1MHz
Termination Style
Gull Wing
DC Resistance (DCR)
0.75mOhm Primary, 870mOhm Secondary Max
Current Rating (Amps)
20 A
Height - Seated (Max)
0.217" (5.50mm)
Turns Ratio - Primary:Secondary
1:30
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | PA1005.XXXNL |
| Packaging | Tray |
| Inductance | 180 µH |
| Part Status | Active |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Frequency Range | 20kHz ~ 1MHz |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.75mOhm Primary, 870mOhm Secondary Max |
| Current Rating (Amps) | 20 A |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Turns Ratio - Primary:Secondary | 1:30 |
