Pulse Electronics P8205

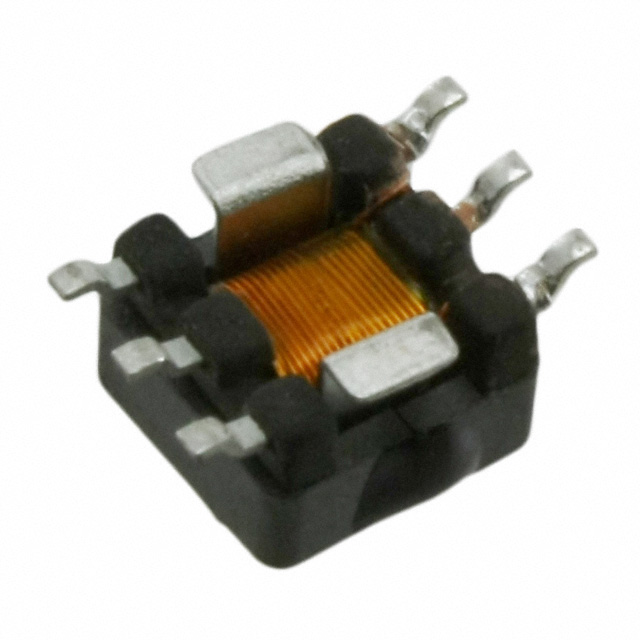

Image shown is a representation only
Manufacturer
Manufacturer No
P8205
Packaging
Tray
Description
CURR SENSE XFMR 1:50 SMD
Detailed Description
1:50 Current Sense Transformer 50kHz ~ 1MHz 6mOhm Surface Mount
DataSheet
Type
Invasive
Series
P820X
Packaging
Tray
Part Status
Obsolete
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Frequency Range
50kHz ~ 1MHz
Size / Dimension
0.284" L x 0.330" W (7.21mm x 8.38mm)
DC Resistance (DCR)
6mOhm
Height - Seated (Max)
0.217" (5.50mm)
Turns Ratio - Primary:Secondary
1:50
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | P820X |
| Packaging | Tray |
| Part Status | Obsolete |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Frequency Range | 50kHz ~ 1MHz |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) |
| DC Resistance (DCR) | 6mOhm |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Turns Ratio - Primary:Secondary | 1:50 |
