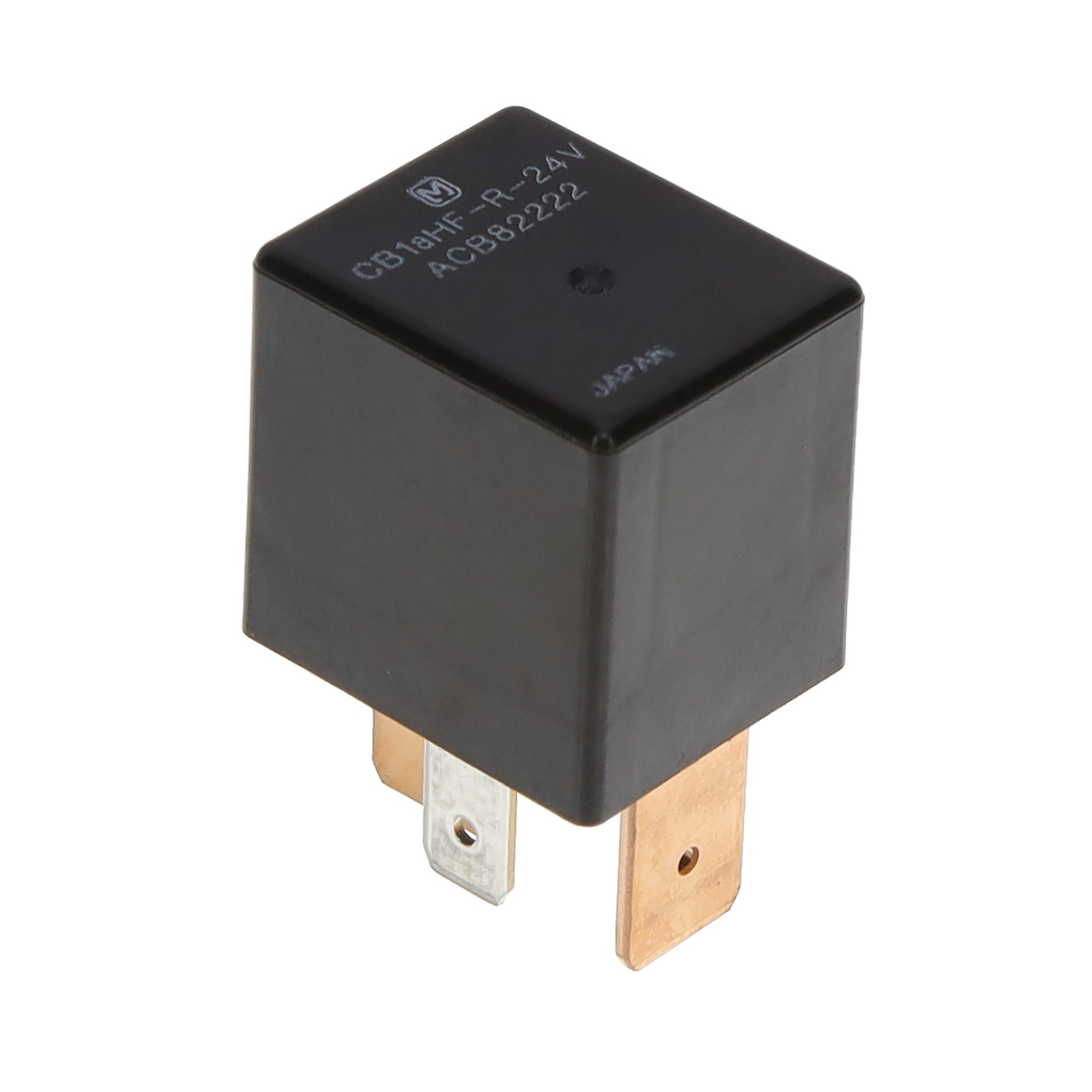

Panasonic Electric Works CB1AHF-R-24V
Image shown is a representation only
Manufacturer
Manufacturer No
CB1AHF-R-24V
Packaging
Bulk
Description
CB AUTOMOTIVE RELAY
Detailed Description
Automotive Relay SPST-NO (1 Form A) 24VDC Coil Socketable
DataSheet
Series
CB
Features
Resistor, Sealed - Flux Protection
Coil Type
Non Latching
Packaging
Bulk
Coil Power
1.6W
Part Status
Active
Coil Current
67 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Panasonic Electric Works
Operate Time
15 ms
Release Time
15 ms
Mounting Type
Socketable
Coil Resistance
358 Ohms
Contact Material
Silver Alloy
Switching Voltage
14VDC - Nom
Termination Style
Plug In
Must Operate Voltage
14 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
70 A
| Attribute | Value |
|---|---|
| Series | CB |
| Features | Resistor, Sealed - Flux Protection |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 1.6W |
| Part Status | Active |
| Coil Current | 67 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Panasonic Electric Works |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Mounting Type | Socketable |
| Coil Resistance | 358 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | 14VDC - Nom |
| Termination Style | Plug In |
| Must Operate Voltage | 14 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 70 A |
