Step1: Product

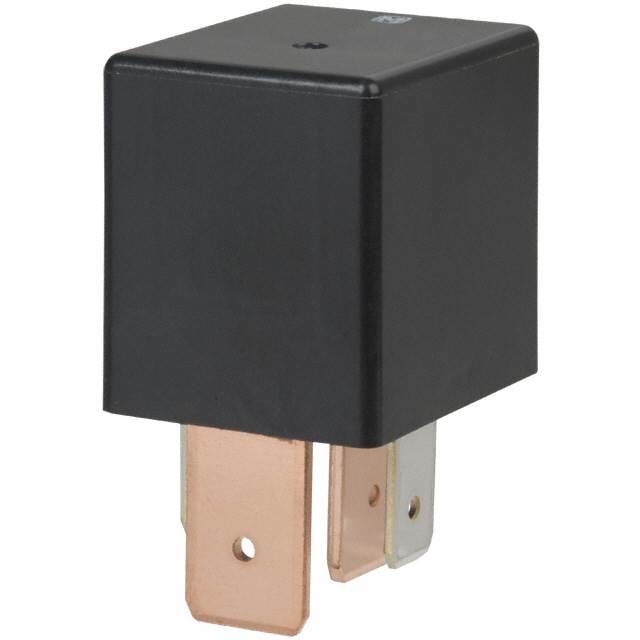

Panasonic Electric Works CB1AH-12V
Image shown is a representation only
Manufacturer
Manufacturer No
CB1AH-12V
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
RELAY AUTOMOTIVE SPST 70A 12V
Detailed Description
Automotive Relay SPST-NO (1 Form A) 12VDC Coil Socketable
Datasheet
Series
CB
Features
Sealed - Fully
Coil Type
Non Latching
Packaging
Bulk
Coil Power
1.8W
Coil Current
150 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Panasonic Electric Works
Operate Time
15 ms
Release Time
15 ms
Mounting Type
Socketable
Coil Resistance
80 Ohms
Contact Material
Silver Alloy, Cadmium Free
Switching Voltage
14VDC - Nom
Termination Style
Plug In, Quick Connect - Multiple Sizes
Base Product Number
CB1AH
Must Operate Voltage
7 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
70 A
| Attribute | Value |
|---|---|
| Series | CB |
| Features | Sealed - Fully |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 1.8W |
| Coil Current | 150 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Panasonic Electric Works |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Mounting Type | Socketable |
| Coil Resistance | 80 Ohms |
| Contact Material | Silver Alloy, Cadmium Free |
| Switching Voltage | 14VDC - Nom |
| Termination Style | Plug In, Quick Connect - Multiple Sizes |
| Base Product Number | CB1AH |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 70 A |
