Step1: Product

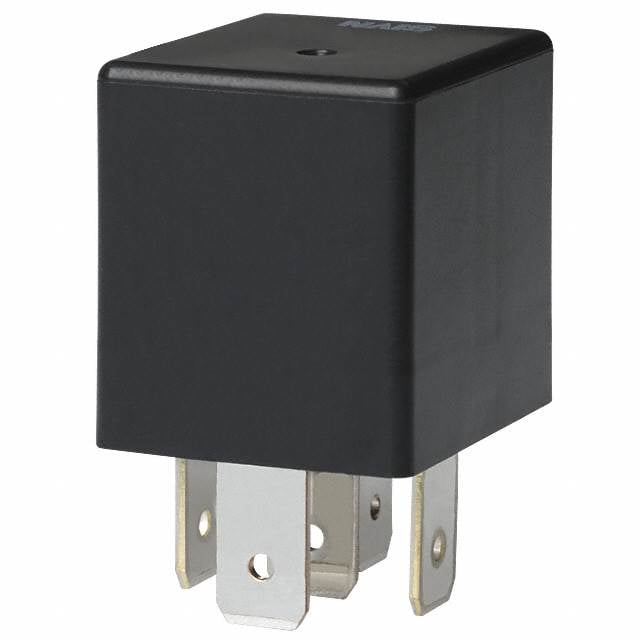

Panasonic Electric Works CB1-12V
Image shown is a representation only
Manufacturer
Manufacturer No
CB1-12V
Quantity
18
Availability
In Stock
Packaging
Bulk
Description
RELAY AUTOMOTIVE SPDT 40A 12V
Detailed Description
Automotive Relay SPDT (1 Form C) 12VDC Coil Socketable
DataSheet
Series
CB
Features
Sealed - Fully
Coil Type
Non Latching
Packaging
Bulk
Coil Power
1.4W
Part Status
Active
Coil Current
117 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Manufacturer
Panasonic Electric Works
Operate Time
15 ms
Release Time
15 ms
Mounting Type
Socketable
Coil Resistance
103 Ohms
Contact Material
Silver Alloy, Cadmium Free
Switching Voltage
14VDC - Nom
Termination Style
Plug In, Quick Connect - 0.250" (6.3mm)
Base Product Number
CB1-12
Must Operate Voltage
7 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Series | CB |
| Features | Sealed - Fully |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 1.4W |
| Part Status | Active |
| Coil Current | 117 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | Panasonic Electric Works |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Mounting Type | Socketable |
| Coil Resistance | 103 Ohms |
| Contact Material | Silver Alloy, Cadmium Free |
| Switching Voltage | 14VDC - Nom |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | CB1-12 |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 40 A |
