Step1: Product
Panasonic Electric Works CB1A-R-M-24V

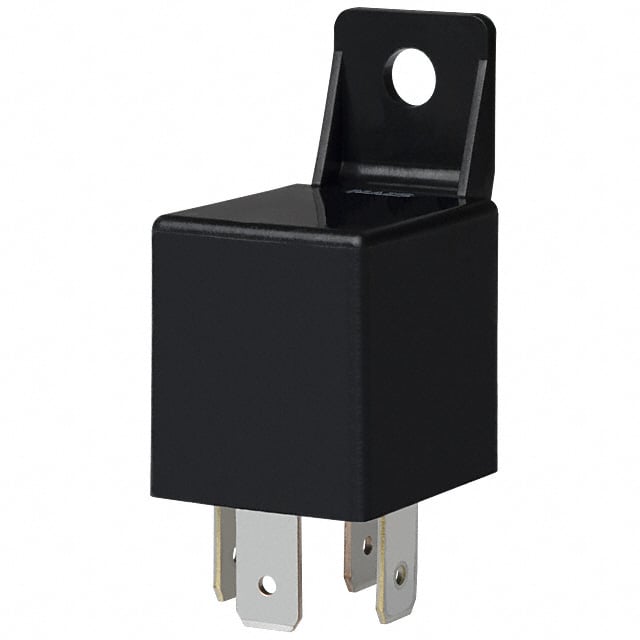

Image shown is a representation only
Manufacturer
Manufacturer No
CB1A-R-M-24V
Packaging
Bulk
Description
RELAY AUTOMOTIVE SPST 20A 24V
Detailed Description
Automotive Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
DataSheet
Series
CB
Features
Resistor, Sealed - Fully
Coil Type
Non Latching
Packaging
Bulk
Coil Power
2W
Part Status
Active
Coil Current
84 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Panasonic Electric Works
Operate Time
15 ms
Release Time
15 ms
Mounting Type
Chassis Mount
Coil Resistance
287 Ohms
Contact Material
Silver Alloy, Cadmium Free
Switching Voltage
28VDC - Nom
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
CB1A
Must Operate Voltage
14 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
20 A
| Attribute | Value |
|---|---|
| Series | CB |
| Features | Resistor, Sealed - Fully |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 2W |
| Part Status | Active |
| Coil Current | 84 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Panasonic Electric Works |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 287 Ohms |
| Contact Material | Silver Alloy, Cadmium Free |
| Switching Voltage | 28VDC - Nom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | CB1A |
| Must Operate Voltage | 14 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 20 A |
