Step1: Product

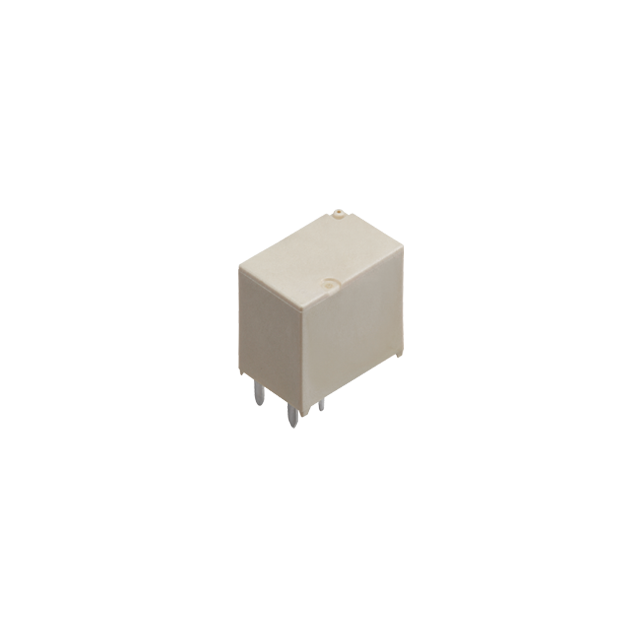

Panasonic Electric Works ACTB2CR2A60
Image shown is a representation only
Manufacturer
Manufacturer No
ACTB2CR2A60
Packaging
Tube
Description
RELAY AUTOMOTIVE SPDT 20A 12V
Detailed Description
Automotive Relay SPDT (1 Form C) 12VDC Coil Through Hole
Datasheet
Series
ACTB
Features
Sealed - Flux Protection
Coil Type
Non Latching
Packaging
Tube
Coil Power
900mW
Coil Current
75 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Manufacturer
Panasonic Electric Works
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Through Hole
Coil Resistance
160 Ohms
Contact Material
Silver Alloy
Switching Voltage
14VDC - Nom
Termination Style
PC Pin
Base Product Number
ACTB2
Must Operate Voltage
6.5 VDC
Must Release Voltage
0.8 VDC
Operating Temperature
-40°C ~ 110°C
Contact Rating (Current)
20 A
| Attribute | Value |
|---|---|
| Series | ACTB |
| Features | Sealed - Flux Protection |
| Coil Type | Non Latching |
| Packaging | Tube |
| Coil Power | 900mW |
| Coil Current | 75 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | Panasonic Electric Works |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 160 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | 14VDC - Nom |
| Termination Style | PC Pin |
| Base Product Number | ACTB2 |
| Must Operate Voltage | 6.5 VDC |
| Must Release Voltage | 0.8 VDC |
| Operating Temperature | -40°C ~ 110°C |
| Contact Rating (Current) | 20 A |
