Step1: Product
Paktron 206K050CS4

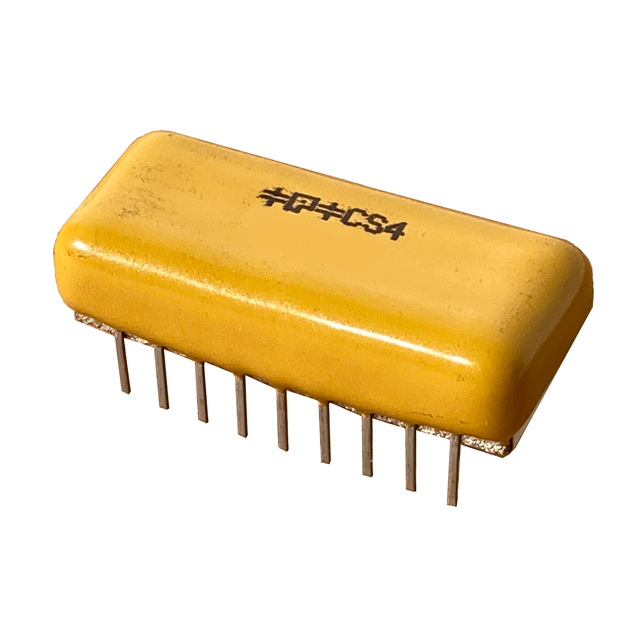

Image shown is a representation only
Manufacturer
Manufacturer No
206K050CS4
Package
10-DIP
Packaging
Tube
Description
CAPACITOR MLP 20UF 50V THRU-HOLE
Detailed Description
20 µF Film Capacitor 35V 50V Polyester, Metallized 10-DIP
DataSheet
Mfr
Paktron
Series
Capstick®
Features
Low ESR, High Temperature
Packaging
Tube
Tolerance
±10%
Capacitance
20 µF
Part Status
Active
Termination
PC Pins
Applications
EMI, RFI Suppression; High Pulse, DV/DT
Lead Spacing
0.394" (10.00mm)
Mounting Type
Through Hole
Package / Case
10-DIP
Size / Dimension
1.150" L x 0.500" W (29.20mm x 12.70mm)
Dielectric Material
Polyester, Metallized
Voltage Rating - AC
35V
Voltage Rating - DC
50V
Height - Seated (Max)
0.319" (8.10mm)
Operating Temperature
-55°C ~ 125°C
ESR (Equivalent Series Resistance)
2.5 mOhms
| Attribute | Value |
|---|---|
| Mfr | Paktron |
| Series | Capstick® |
| Features | Low ESR, High Temperature |
| Packaging | Tube |
| Tolerance | ±10% |
| Capacitance | 20 µF |
| Part Status | Active |
| Termination | PC Pins |
| Applications | EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 0.394" (10.00mm) |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP |
| Size / Dimension | 1.150" L x 0.500" W (29.20mm x 12.70mm) |
| Dielectric Material | Polyester, Metallized |
| Voltage Rating - AC | 35V |
| Voltage Rating - DC | 50V |
| Height - Seated (Max) | 0.319" (8.10mm) |
| Operating Temperature | -55°C ~ 125°C |
| ESR (Equivalent Series Resistance) | 2.5 mOhms |
