onsemi NTZD3155CT2G

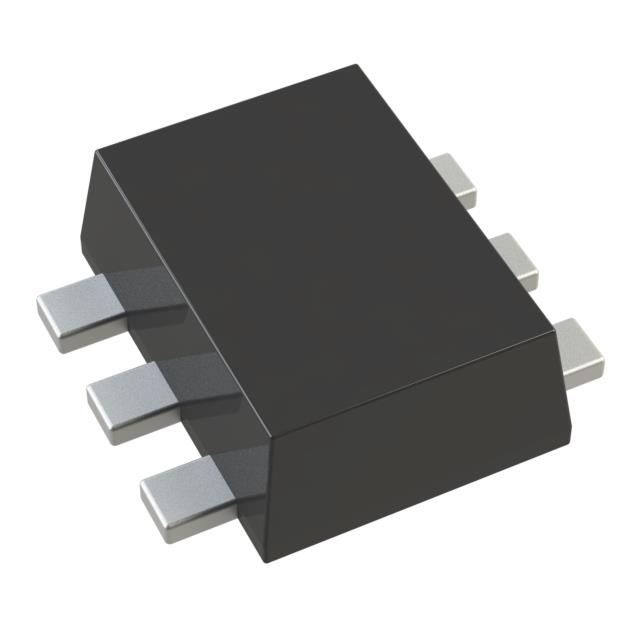

Image shown is a representation only
Manufacturer
Manufacturer No
NTZD3155CT2G
Quantity
2015
Availability
In Stock
Package
SOT-563, SOT-666
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET N/P-CH 20V 0.54A SOT563
Detailed Description
Mosfet Array 20V 540mA, 430mA 250mW Surface Mount SOT-563
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Part Status
Active
Power - Max
250mW
Manufacturer
onsemi
Configuration
N and P-Channel
Mounting Type
Surface Mount
Package / Case
SOT-563, SOT-666
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
NTZD3155
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
550mOhm @ 540mA, 4.5V
Supplier Device Package
SOT-563
Gate Charge (Qg) (Max) @ Vgs
2.5nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
150pF @ 16V
Current - Continuous Drain (Id) @ 25°C
540mA, 430mA
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Part Status | Active |
| Power - Max | 250mW |
| Manufacturer | onsemi |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | NTZD3155 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 540mA, 4.5V |
| Supplier Device Package | SOT-563 |
| Gate Charge (Qg) (Max) @ Vgs | 2.5nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 16V |
| Current - Continuous Drain (Id) @ 25°C | 540mA, 430mA |
