Step1: Product
onsemi NTUD3169CZT5G

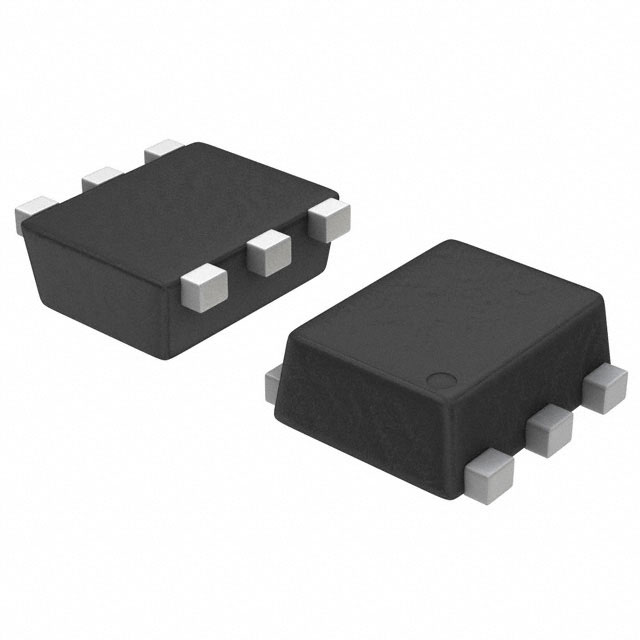

Image shown is a representation only
Manufacturer
Manufacturer No
NTUD3169CZT5G
Date Code
2117
Quantity
8,888
Availability
In Stock
Package
SOT-963
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET N/P-CH 20V 0.22A SOT963
Detailed Description
Mosfet Array 20V 220mA, 200mA 125mW Surface Mount SOT-963
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Power - Max
125mW
Manufacturer
onsemi
Configuration
N and P-Channel
Mounting Type
Surface Mount
Package / Case
SOT-963
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
NTUD3169
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
1.5Ohm @ 100mA, 4.5V
Supplier Device Package
SOT-963
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
12.5pF @ 15V
Current - Continuous Drain (Id) @ 25°C
220mA, 200mA
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Power - Max | 125mW |
| Manufacturer | onsemi |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Package / Case | SOT-963 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | NTUD3169 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 4.5V |
| Supplier Device Package | SOT-963 |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 12.5pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 220mA, 200mA |
