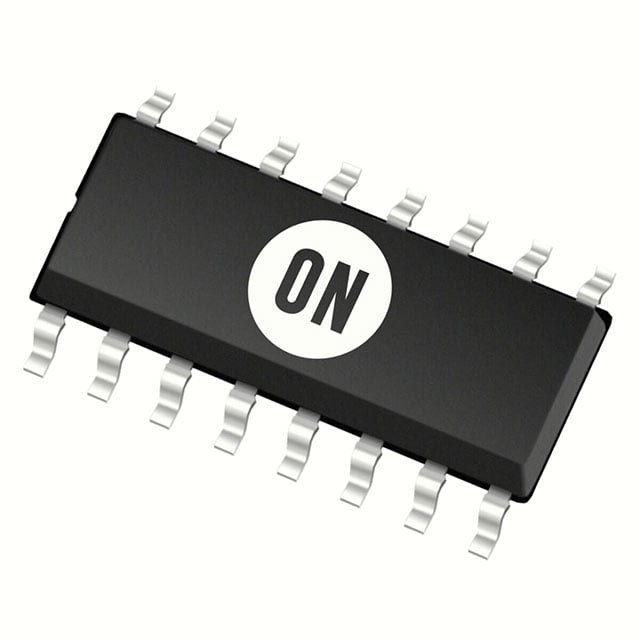

onsemi NCP13992ACDR2G
Image shown is a representation only
Manufacturer
Manufacturer No
NCP13992ACDR2G
Quantity
3068
Availability
In Stock
Package
16-SOIC (0.154", 3.90mm Width), 14 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC OFFLINE SW HALF-BRDG 16SOIC
Detailed Description
Converter Offline Half-Bridge Topology 20kHz ~ 750kHz 16-SOIC
DataSheet
Topology
Half-Bridge
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Duty Cycle
50%
Part Status
Active
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.154", 3.90mm Width), 14 Leads
Control Features
EN, Frequency Control, Soft Start, Sync
Fault Protection
Over Current, Over/Under Voltage, Short Circuit
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Start Up
9 V
Base Product Number
NCP13992
Frequency - Switching
20kHz ~ 750kHz
Operating Temperature
-50°C ~ 150°C (TJ)
Supplier Device Package
16-SOIC
Voltage - Supply (Vcc/Vdd)
7.5V ~ 10V
| Attribute | Value |
|---|---|
| Topology | Half-Bridge |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Duty Cycle | 50% |
| Part Status | Active |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Control Features | EN, Frequency Control, Soft Start, Sync |
| Fault Protection | Over Current, Over/Under Voltage, Short Circuit |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Start Up | 9 V |
| Base Product Number | NCP13992 |
| Frequency - Switching | 20kHz ~ 750kHz |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 10V |
