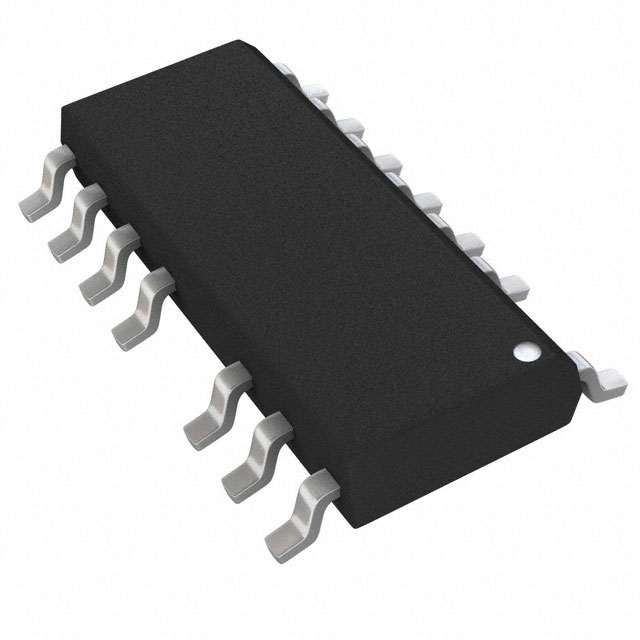

onsemi NCP1399AADR2G
Image shown is a representation only
Manufacturer
Manufacturer No
NCP1399AADR2G
Quantity
4612
Availability
In Stock
Package
16-SOIC (0.154", 3.90mm Width), 14 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC OFFLINE SW HALF-BRDG 16SOIC
Detailed Description
Converter Offline Half-Bridge Topology 20kHz ~ 750kHz 16-SOIC
DataSheet
Series
NCP1399
Topology
Half-Bridge
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Duty Cycle
50%
Part Status
Active
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.154", 3.90mm Width), 14 Leads
Fault Protection
Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Start Up
15.8 V
Base Product Number
NCP1399
Frequency - Switching
20kHz ~ 750kHz
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
16-SOIC
Voltage - Supply (Vcc/Vdd)
9.5V ~ 20V
| Attribute | Value |
|---|---|
| Series | NCP1399 |
| Topology | Half-Bridge |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Duty Cycle | 50% |
| Part Status | Active |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Start Up | 15.8 V |
| Base Product Number | NCP1399 |
| Frequency - Switching | 20kHz ~ 750kHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
