Step1: Product
onsemi FDMC8030

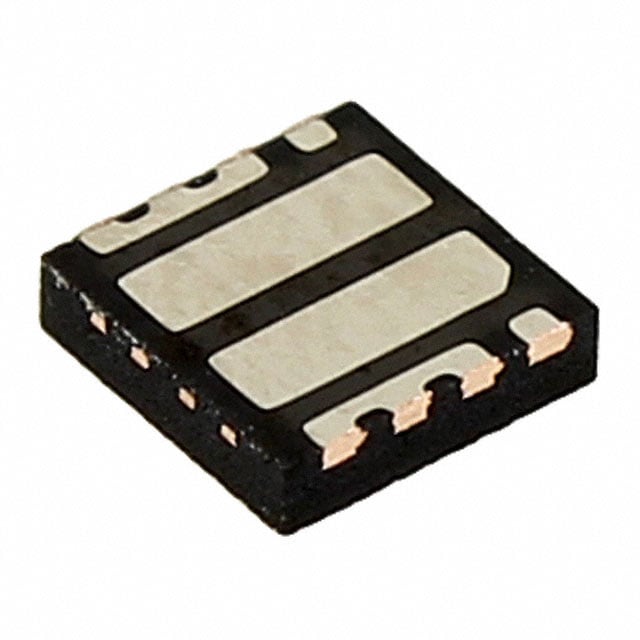

Image shown is a representation only
Manufacturer
Manufacturer No
FDMC8030
Quantity
138
Availability
In Stock
Package
8-PowerWDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 40V 12A 8PWR33
Detailed Description
Mosfet Array 40V 12A 800mW Surface Mount 8-Power33 (3x3)
DataSheet
Series
PowerTrench®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Part Status
Obsolete
Power - Max
800mW
Manufacturer
onsemi
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
8-PowerWDFN
Vgs(th) (Max) @ Id
2.8V @ 250µA
Base Product Number
FDMC80
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
10mOhm @ 12A, 10V
Supplier Device Package
8-Power33 (3x3)
Gate Charge (Qg) (Max) @ Vgs
30nC @ 10V
Drain to Source Voltage (Vdss)
40V
Input Capacitance (Ciss) (Max) @ Vds
1975pF @ 20V
Current - Continuous Drain (Id) @ 25°C
12A
| Attribute | Value |
|---|---|
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Part Status | Obsolete |
| Power - Max | 800mW |
| Manufacturer | onsemi |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Base Product Number | FDMC80 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 12A, 10V |
| Supplier Device Package | 8-Power33 (3x3) |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 1975pF @ 20V |
| Current - Continuous Drain (Id) @ 25°C | 12A |
