Step1: Product
onsemi FDMA1029PZ

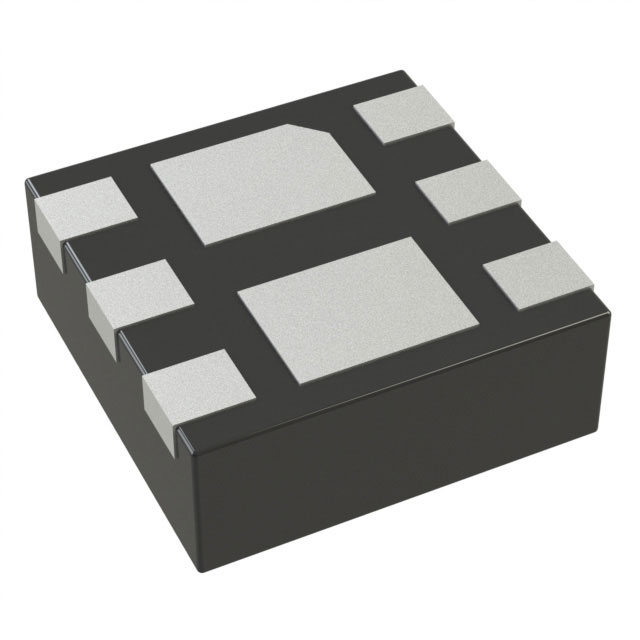

Image shown is a representation only
Manufacturer
Manufacturer No
FDMA1029PZ
Quantity
9
Availability
In Stock
Package
6-WDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2P-CH 20V 3.1A 6WDFN
Detailed Description
Mosfet Array 20V 3.1A 700mW Surface Mount 6-WDFN (2x2)
DataSheet
Series
PowerTrench®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Part Status
Active
Power - Max
700mW
Manufacturer
onsemi
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
6-WDFN Exposed Pad
Vgs(th) (Max) @ Id
1.5V @ 250µA
Base Product Number
FDMA1029
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
95mOhm @ 3.1A, 4.5V
Supplier Device Package
6-WDFN (2x2)
Gate Charge (Qg) (Max) @ Vgs
10nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
540pF @ 10V
Current - Continuous Drain (Id) @ 25°C
3.1A
| Attribute | Value |
|---|---|
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Part Status | Active |
| Power - Max | 700mW |
| Manufacturer | onsemi |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Base Product Number | FDMA1029 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 95mOhm @ 3.1A, 4.5V |
| Supplier Device Package | 6-WDFN (2x2) |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 540pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 3.1A |
Purchase & Inquiry
Purchase
You may place an order without registering to
We strongly suggest you sign in before purchasing as you can track your order in real time.
Means of Payment
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)
It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.
IMPORTANT NOTICE
1.You'l receive an order information email in your inbox (Please remember to check the spam folder if you didn't hear from us)
2.Since inventories and prices may fuctuate to some extent, the sales manager is going to reconfirm the order and let you know
Packing
Step2: Vacuum Packaging
Step3: Anti-StaticBag
Step4: Individual Packaging
Step5: Packaging Boxes
Shipping Information
| Shipping Type | Ship Fee | Lead Time | |
|---|---|---|---|
 | DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | EMS | $20.00-$40.00 (0.50 KG) | 2-5 days |
Processing Time: Shipping fees vary depending on the destination region and country.
