onsemi FDD8424H

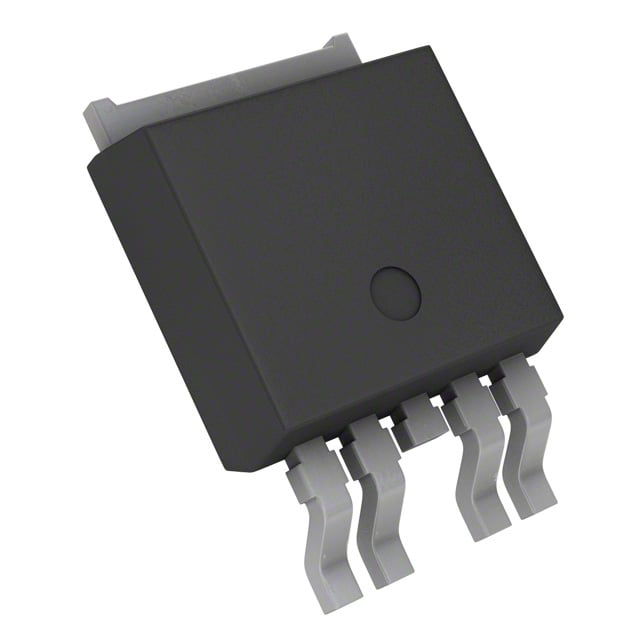

Image shown is a representation only
Manufacturer
Manufacturer No
FDD8424H
Package
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
Packaging
Tape & Reel (TR);
Description
MOSFET N/P-CH 40V 9A/6.5A TO252
Detailed Description
Mosfet Array 40V 9A, 6.5A 1.3W Surface Mount TO-252 (DPAK)
DataSheet
Series
PowerTrench®
Packaging
Tape & Reel (TR); Digi-Reel®
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Part Status
Obsolete
Power - Max
1.3W
Manufacturer
onsemi
Configuration
N and P-Channel
Mounting Type
Surface Mount
Package / Case
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
Vgs(th) (Max) @ Id
3V @ 250µA
Base Product Number
FDD8424
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
24mOhm @ 9A, 10V
Supplier Device Package
TO-252 (DPAK)
Gate Charge (Qg) (Max) @ Vgs
20nC @ 10V
Drain to Source Voltage (Vdss)
40V
Input Capacitance (Ciss) (Max) @ Vds
1000pF @ 20V
Current - Continuous Drain (Id) @ 25°C
9A, 6.5A
| Attribute | Value |
|---|---|
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Part Status | Obsolete |
| Power - Max | 1.3W |
| Manufacturer | onsemi |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Base Product Number | FDD8424 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 9A, 10V |
| Supplier Device Package | TO-252 (DPAK) |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000pF @ 20V |
| Current - Continuous Drain (Id) @ 25°C | 9A, 6.5A |
