Step1: Product
onsemi ECH8697R-TL-W

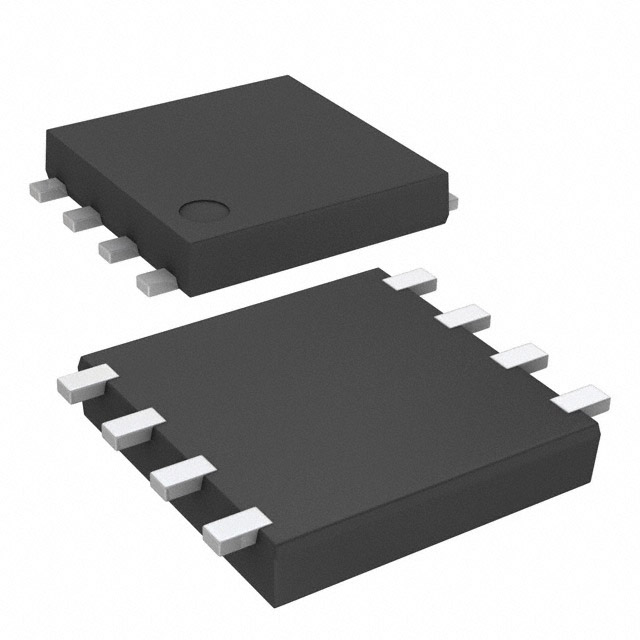

Image shown is a representation only
Manufacturer
Manufacturer No
ECH8697R-TL-W
Quantity
2,244
Availability
In Stock
Package
8-SMD, Flat Leads
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2N-CH 24V 10A SOT28
Detailed Description
Mosfet Array 24V 10A 1.5W Surface Mount SOT-28FL/ECH8
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate, 2.5V Drive
Power - Max
1.5W
Manufacturer
onsemi
Configuration
2 N-Channel (Dual) Common Drain
Mounting Type
Surface Mount
Package / Case
8-SMD, Flat Leads
Base Product Number
ECH8697
Operating Temperature
150°C (TJ)
Rds On (Max) @ Id, Vgs
11.6mOhm @ 5A, 4.5V
Supplier Device Package
SOT-28FL/ECH8
Gate Charge (Qg) (Max) @ Vgs
6nC @ 4.5V
Drain to Source Voltage (Vdss)
24V
Current - Continuous Drain (Id) @ 25°C
10A
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate, 2.5V Drive |
| Power - Max | 1.5W |
| Manufacturer | onsemi |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Leads |
| Base Product Number | ECH8697 |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 11.6mOhm @ 5A, 4.5V |
| Supplier Device Package | SOT-28FL/ECH8 |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 24V |
| Current - Continuous Drain (Id) @ 25°C | 10A |
