Step1: Product
NXP USA Inc. NX5P3201CUKZ

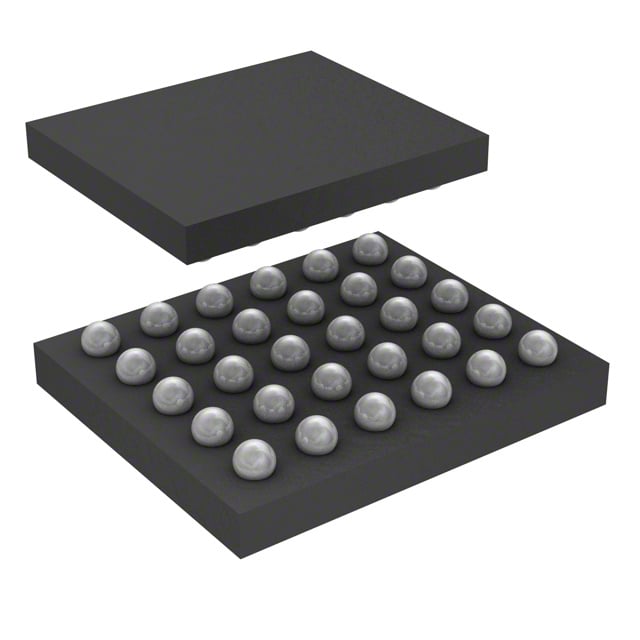

Image shown is a representation only
Manufacturer
Manufacturer No
NX5P3201CUKZ
Package
30-UFBGA, WLCSP
Packaging
Tape & Reel (TR)
Description
IC PWR SWITCH N-CHAN 1:1 30WLCSP
Detailed Description
Power Switch/Driver 1:1 N-Channel 3A, 6A 30-WLCSP (2.26x2.56)
DataSheet
Mfr
NXP USA Inc.
Series
NX5
Features
Slew Rate Controlled, Status Flag
Interface
Parallel
Packaging
Tape & Reel (TR)
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Obsolete
Switch Type
USB Switch
Rds On (Typ)
8mOhm, 32mOhm
Mounting Type
Surface Mount
Package / Case
30-UFBGA, WLCSP
Voltage - Load
2.7V ~ 5.5V, 3.4V ~ 5.5V
Fault Protection
Over Temperature, Over Voltage, Reverse Current, UVLO
Number of Outputs
2
Base Product Number
NX5P3201
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 85°C (TA)
Current - Output (Max)
3A, 6A
Supplier Device Package
30-WLCSP (2.26x2.56)
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | NXP USA Inc. |
| Series | NX5 |
| Features | Slew Rate Controlled, Status Flag |
| Interface | Parallel |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Obsolete |
| Switch Type | USB Switch |
| Rds On (Typ) | 8mOhm, 32mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 30-UFBGA, WLCSP |
| Voltage - Load | 2.7V ~ 5.5V, 3.4V ~ 5.5V |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, UVLO |
| Number of Outputs | 2 |
| Base Product Number | NX5P3201 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output (Max) | 3A, 6A |
| Supplier Device Package | 30-WLCSP (2.26x2.56) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
