Step1: Product

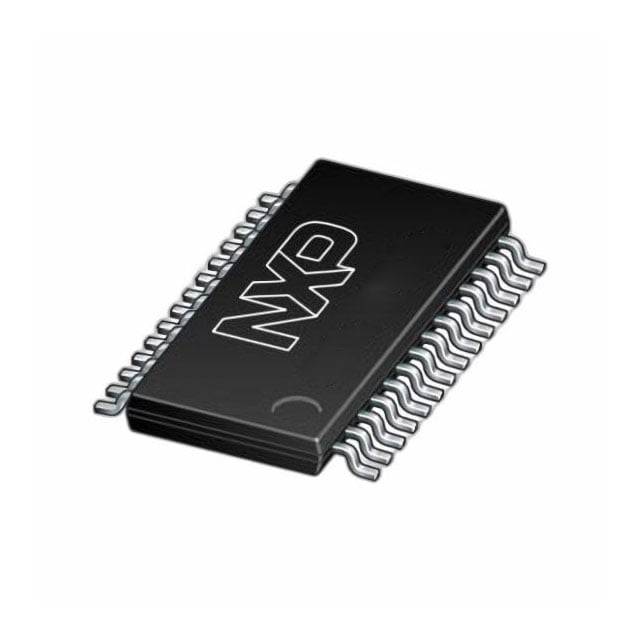

NXP USA Inc. MC33XS2410EL
Image shown is a representation only
Manufacturer
Manufacturer No
MC33XS2410EL
Quantity
8
Availability
In Stock
Package
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Tube
Description
HIGH-SIDE SWITCH 60V HTSSOP28
Detailed Description
Power Switch/Driver 1:4 N-Channel 3.6A 28-HTSSOP
Datasheet
Mfr
NXP USA Inc.
Grade
Automotive
Features
Load Discharge, Slew Rate Controlled
Interface
SPI
Packaging
Tube
Input Type
Non-Inverting
Output Type
N-Channel
Switch Type
General Purpose
Rds On (Typ)
100mOhm
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Load
3V ~ 60V
Fault Protection
Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO
Number of Outputs
4
Output Configuration
High Side
Ratio - Input:Output
1:4
Operating Temperature
-40°C ~ 150°C (TJ)
Current - Output (Max)
3.6A
Supplier Device Package
28-HTSSOP
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | NXP USA Inc. |
| Grade | Automotive |
| Features | Load Discharge, Slew Rate Controlled |
| Interface | SPI |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Switch Type | General Purpose |
| Rds On (Typ) | 100mOhm |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Voltage - Load | 3V ~ 60V |
| Fault Protection | Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Number of Outputs | 4 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:4 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Output (Max) | 3.6A |
| Supplier Device Package | 28-HTSSOP |
| Voltage - Supply (Vcc/Vdd) | Not Required |
