NoMIS Power N3PT100MP170K

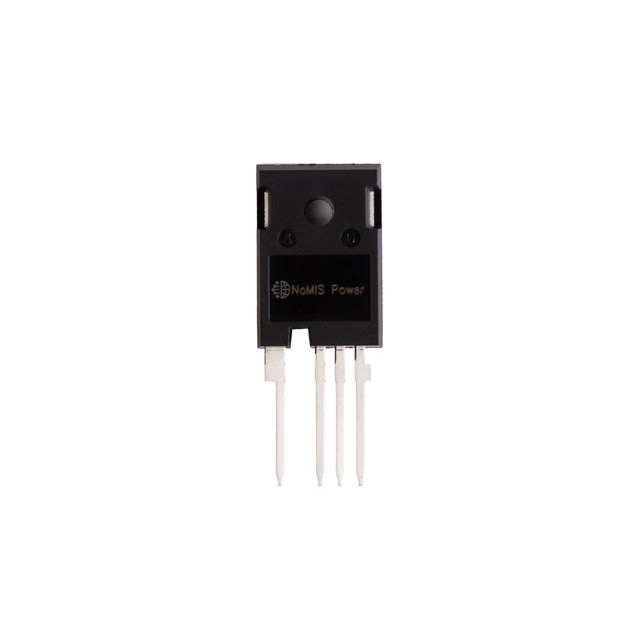

Image shown is a representation only
Manufacturer
Manufacturer No
N3PT100MP170K
Package
TO-247-4
Packaging
Tube
Description
1700 V 100 mOhm SiC MOSFET TO-24
Detailed Description
N-Channel 1700 V 24A 136W Through Hole TO-247-4
DataSheet
Mfr
NoMIS Power
Series
1700
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
+25V, -5V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-4
Vgs(th) (Max) @ Id
3.4V @ 10mA
Operating Temperature
-55°C ~ 175°C
Rds On (Max) @ Id, Vgs
120mOhm @ 15A, 20V
Power Dissipation (Max)
136W
Supplier Device Package
TO-247-4
Gate Charge (Qg) (Max) @ Vgs
67 nC @ 20 V
Drain to Source Voltage (Vdss)
1700 V
Input Capacitance (Ciss) (Max) @ Vds
1050 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)
20V
Current - Continuous Drain (Id) @ 25°C
24A
| Attribute | Value |
|---|---|
| Mfr | NoMIS Power |
| Series | 1700 |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | +25V, -5V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Vgs(th) (Max) @ Id | 3.4V @ 10mA |
| Operating Temperature | -55°C ~ 175°C |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 15A, 20V |
| Power Dissipation (Max) | 136W |
| Supplier Device Package | TO-247-4 |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 20 V |
| Drain to Source Voltage (Vdss) | 1700 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1050 pF @ 1000 V |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 24A |
