Step1: Product

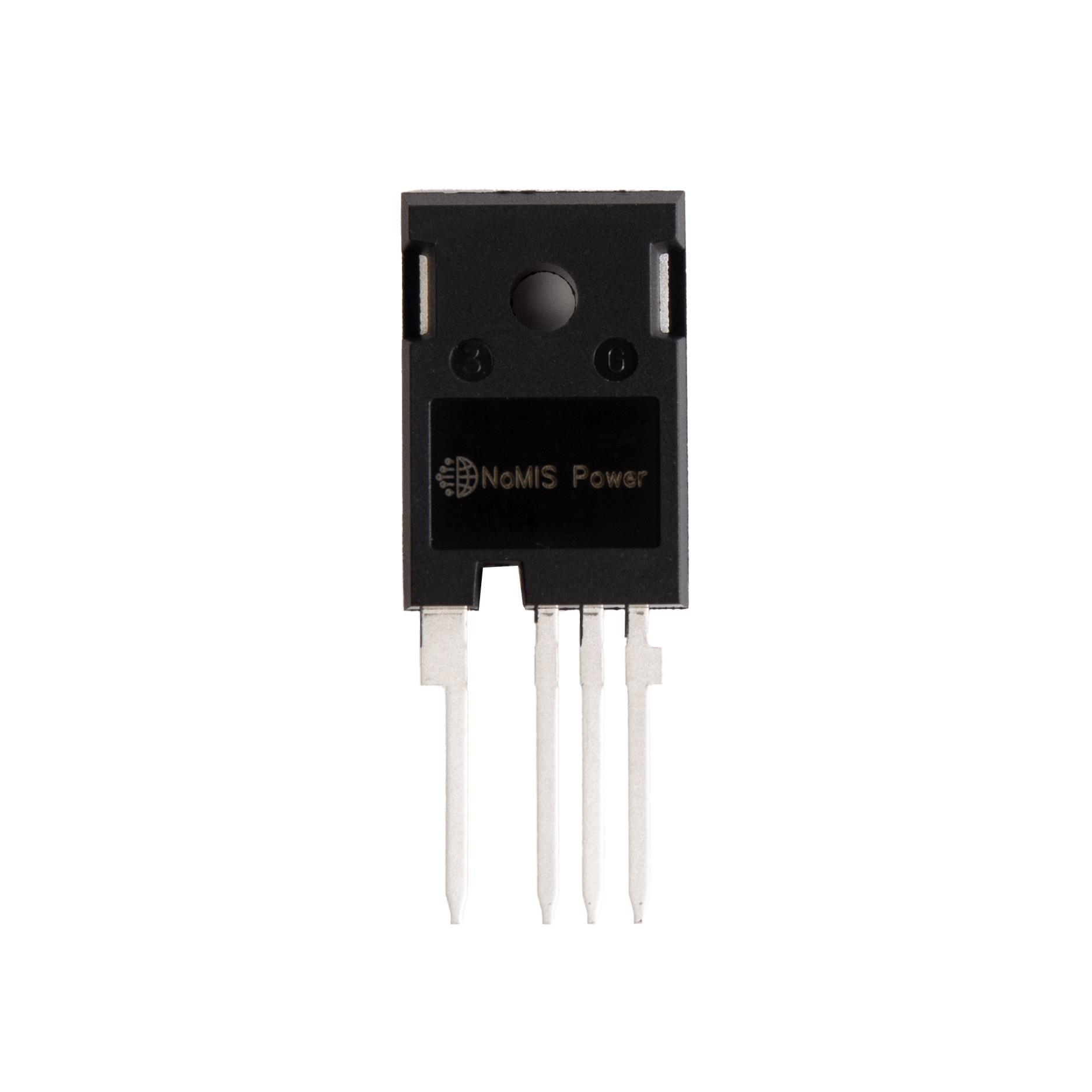

NoMIS Power N3PT065MP120K
Image shown is a representation only
Manufacturer
Manufacturer No
N3PT065MP120K
Package
TO-247-4
Description
1200 V 65 mOhm SiC MOSFET TO-247
Detailed Description
N-Channel 1200 V 40A 174W (Tc) Through Hole TO-247-4
DataSheet
Mfr
NoMIS Power
Series
1200
FET Type
N-Channel
Vgs (Max)
+25V, -5V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-4
Vgs(th) (Max) @ Id
3V @ 10mA
Operating Temperature
-55°C ~ 175°C
Rds On (Max) @ Id, Vgs
70mOhm @ 20A, 20V
Power Dissipation (Max)
174W (Tc)
Supplier Device Package
TO-247-4
Drain to Source Voltage (Vdss)
1200 V
Drive Voltage (Max Rds On, Min Rds On)
20V
Current - Continuous Drain (Id) @ 25°C
40A
| Attribute | Value |
|---|---|
| Mfr | NoMIS Power |
| Series | 1200 |
| FET Type | N-Channel |
| Vgs (Max) | +25V, -5V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Vgs(th) (Max) @ Id | 3V @ 10mA |
| Operating Temperature | -55°C ~ 175°C |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 20A, 20V |
| Power Dissipation (Max) | 174W (Tc) |
| Supplier Device Package | TO-247-4 |
| Drain to Source Voltage (Vdss) | 1200 V |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 40A |
