Step1: Product

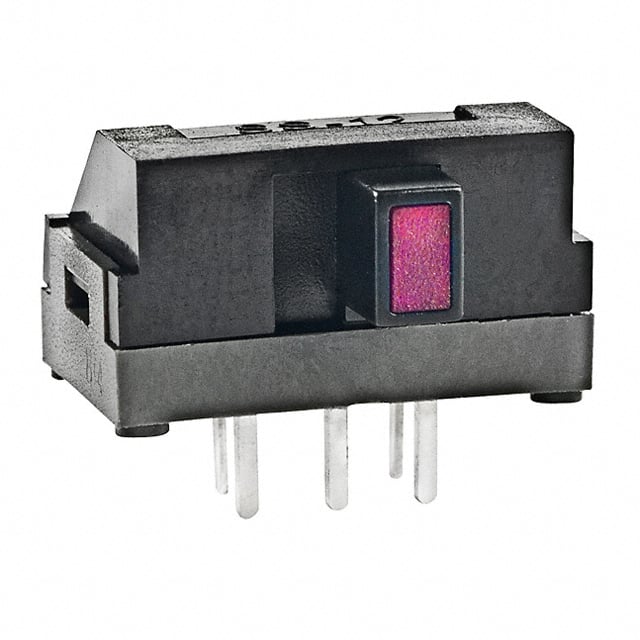

NKK Switches SS12SDH2LC
Image shown is a representation only
Manufacturer
Manufacturer No
SS12SDH2LC
Packaging
Bulk
Description
ULTRA-MINIATURE ILLUM SLIDE
Detailed Description
Slide Switch SPDT Through Hole, Right Angle
DataSheet
Series
SS
Circuit
SPDT
Packaging
Bulk
Part Status
Obsolete
Manufacturer
NKK Switches
Actuator Type
Illuminated
Mounting Type
Through Hole, Right Angle
Switch Travel
2.00mm
Contact Finish
Silver
Contact Timing
Shorting (MBB)
Actuator Length
2.50mm
Electrical Life
10,000 Cycles
Mechanical Life
10,000 Cycles
Switch Function
On-On
Contact Material
Phosphor Bronze
Actuator Material
Polyacetal
Termination Style
PC Pin
Base Product Number
SS12SD
Voltage Rating - DC
30 V
Current Rating (Amps)
100mA (DC)
Operating Temperature
-15°C ~ 60°C
| Attribute | Value |
|---|---|
| Series | SS |
| Circuit | SPDT |
| Packaging | Bulk |
| Part Status | Obsolete |
| Manufacturer | NKK Switches |
| Actuator Type | Illuminated |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 2.00mm |
| Contact Finish | Silver |
| Contact Timing | Shorting (MBB) |
| Actuator Length | 2.50mm |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 10,000 Cycles |
| Switch Function | On-On |
| Contact Material | Phosphor Bronze |
| Actuator Material | Polyacetal |
| Termination Style | PC Pin |
| Base Product Number | SS12SD |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 100mA (DC) |
| Operating Temperature | -15°C ~ 60°C |
