Step1: Product

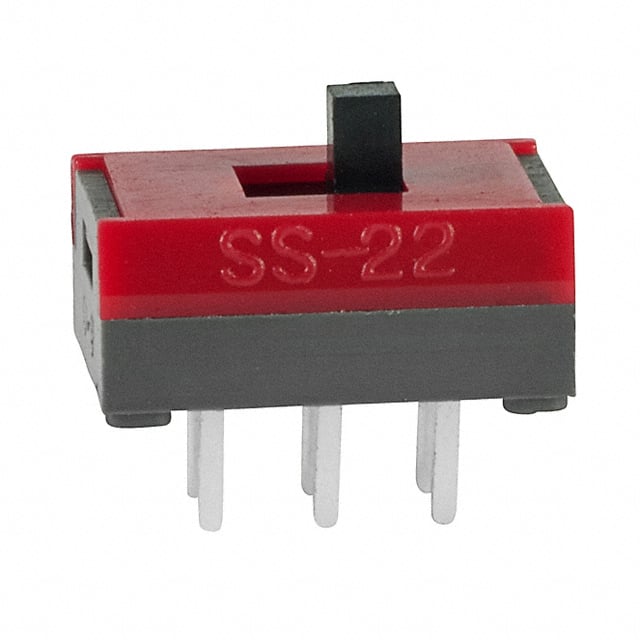

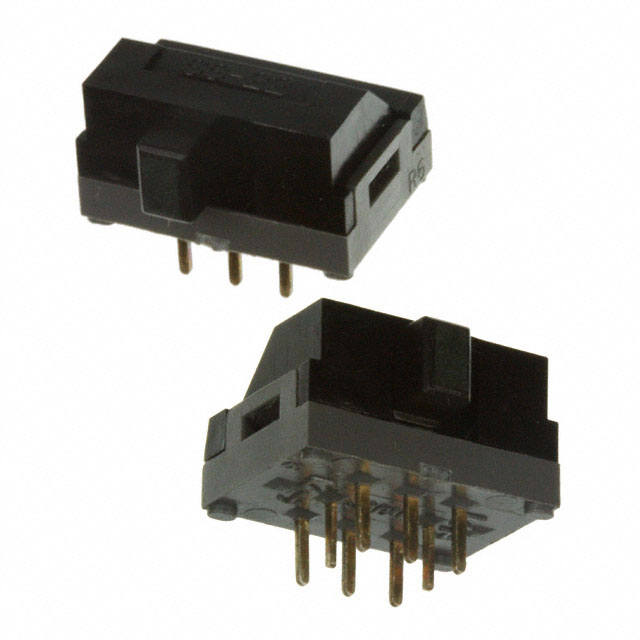

NKK Switches SS22SDP2
Image shown is a representation only
Manufacturer
Manufacturer No
SS22SDP2
Quantity
224
Availability
In Stock
Description
SWITCH SLIDE DPDT 100MA 30V
Detailed Description
Slide Switch DPDT Through Hole
DataSheet
Series
SS
Circuit
DPDT
Part Status
Active
Manufacturer
NKK Switches
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
2.00mm
Contact Finish
Silver
Contact Timing
Shorting (MBB)
Actuator Length
2.00mm
Electrical Life
10,000 Cycles
Mechanical Life
10,000 Cycles
Switch Function
On-On
Contact Material
Phosphor Bronze
Actuator Material
Polyamide (PA), Nylon
Termination Style
PC Pin
Base Product Number
SS22SD
Voltage Rating - DC
30 V
Current Rating (Amps)
100mA (DC)
Operating Temperature
-15°C ~ 60°C
| Attribute | Value |
|---|---|
| Series | SS |
| Circuit | DPDT |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 2.00mm |
| Contact Finish | Silver |
| Contact Timing | Shorting (MBB) |
| Actuator Length | 2.00mm |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 10,000 Cycles |
| Switch Function | On-On |
| Contact Material | Phosphor Bronze |
| Actuator Material | Polyamide (PA), Nylon |
| Termination Style | PC Pin |
| Base Product Number | SS22SD |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 100mA (DC) |
| Operating Temperature | -15°C ~ 60°C |
