Step1: Product

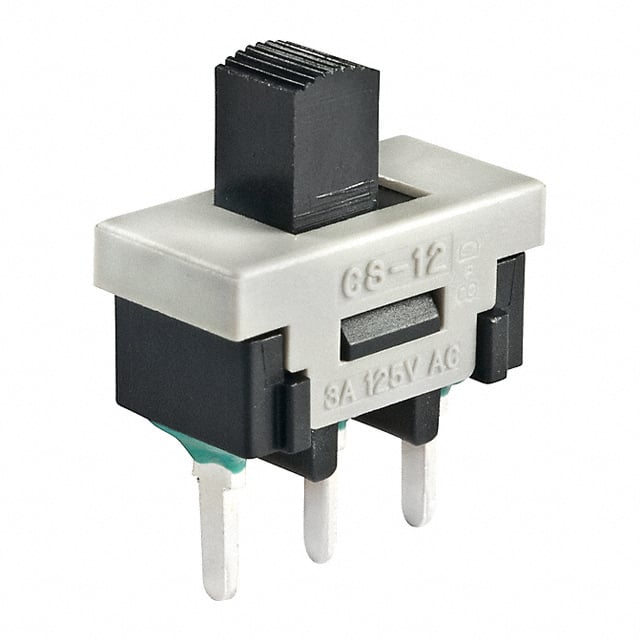

NKK Switches CS12ANW03
Image shown is a representation only
Manufacturer
Manufacturer No
CS12ANW03
Quantity
92
Availability
In Stock
Packaging
Tray
Description
SWITCH SLIDE SPDT 3A 125V
Detailed Description
Slide Switch SPDT Through Hole
DataSheet
Series
CS
Circuit
SPDT
Features
Epoxy Sealed Terminals
Packaging
Tray
Part Status
Active
Manufacturer
NKK Switches
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
2.20mm
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
5.10mm
Electrical Life
20,000 Cycles
Mechanical Life
50,000 Cycles
Switch Function
On-On
Contact Material
Copper
Actuator Material
Polyamide (PA), Nylon, Glass Filled
Termination Style
PC Pin
Voltage Rating - AC
125 V
Current Rating (Amps)
3A (AC)
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | CS |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Tray |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 2.20mm |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 5.10mm |
| Electrical Life | 20,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Switch Function | On-On |
| Contact Material | Copper |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 3A (AC) |
| Operating Temperature | -30°C ~ 85°C |
